RODELink Film Maker Kit - Wireless Audio System
  • RODELink Film Maker Kit - Wireless Audio System
  • RODELink Film Maker Kit - Wireless Audio System
  • RODELink Film Maker Kit - Wireless Audio System
  • RODELink Film Maker Kit - Wireless Audio System
  • RODELink Film Maker Kit - Wireless Audio System
  • RODELink Film Maker Kit - Wireless Audio System
Rode

RODELink Film Maker Kit - Wireless Audio System

Code: RODLNK-FM
0 Stars 0 reviews

Read Reviews

  • Up to 100 metres range
  • AA battery [10+ hours use] or USB powered
  • Includes RØDE's broadcast Lavalier microphone [sold separately for £139]
  • Includes +20dB Boost mode for clean DSLR sound direct from Filmmaker Kit
Read Full Description
RRP: £369.00 (inc. VAT)
Save: 12%
Your Price: £324.00 (inc. VAT)
Item in Stock   |   Express Delivery
  • Delivery Information
  • Express Delivery - £4.99
  • Standard Delivery - FREE
Add to Bag
This product has been added to your basket...
  • Continue Shopping
  • Checkout

RODELink Film Maker Kit - Wireless Audio System

RØDELink represents the next generation of digital wireless systems. Using a series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres (over 100 yards). The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RØDE’s omnidirectional Lavalier microphone is included in the kit to provide the highest possible audio reproduction quality.

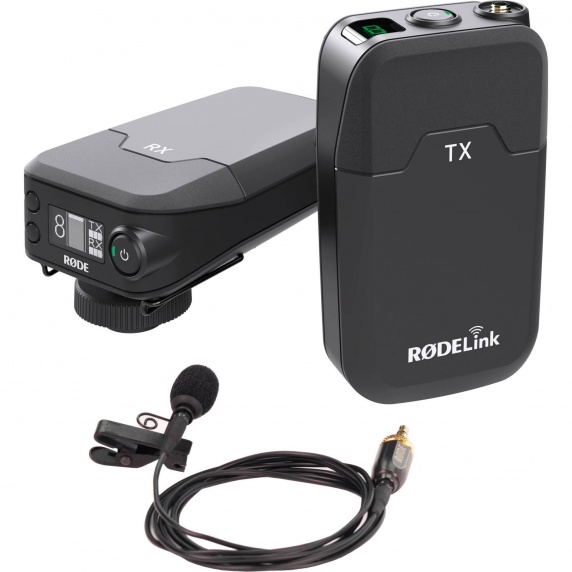

In The Box

  • Lavalier - Lapel Microphone
  • RX-CAM - Camera-Mounted Wireless Receiver
  • TX-BELT - Beltpack Wireless Transmitter
  • Captive TRS cable





Features

  • Series II, 2.4GHz digital transmission
  • 128-bit encryption
  • Up to 100 metres range
  • OLED display (on receiver)
  • One button pairing
  • Three level gain control
  • AA battery [10+ hours use] or USB powered
  • Includes RØDE's broadcast Lavalier microphone [sold separately for £139]
  • Includes +20dB Boost mode for clean DSLR sound direct from Filmmaker Kit
  • Camera mountable or clip to bag [for XLR connection just add VXLR connector]

RØDELink Filmmaker Kit Specifications


Transmission type 2.4GHz Fixed Frequency Agile System
System dynamic range 112dB
Range (distance) 100m
Frequency range 35Hz - 22kHz
Maximum output level 1v Rms (2.8v P-p)
Max input signal level 1v Rms (2.8v P-p)
Max latency 4ms

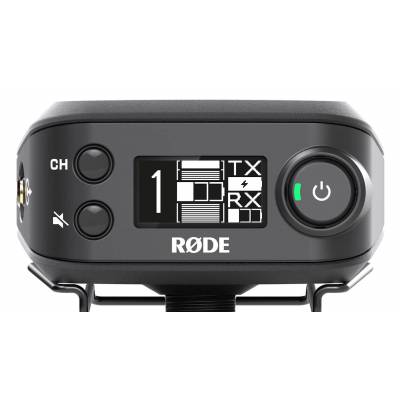

Receiver (RX-CAM)

Power source 2 X AA Battery Or MicroUSB
Antenna Internal
Output connection 3.5mm TRS Locking Jack Socket - Dual Mono
Output impedance 300?
Dimensions 111mm X 65mm X 52mm
Weight 190gm

Transmitter (TX-BELT)

Power source 2 X AA Battery Or MicroUSB
Antenna Internal
Output connection 3.5mm TRS Locking Jack Socket
Output impedance 10k?
Dimensions 111mm X 65mm X 40mm
Weight 190gm

Lavalier

Acoustic Principle Pressure Gradient
Active Electronics JFET impedance converter
Capsule 0.10"
Address Type End
Frequency Range 60Hz - 18kHz
Output Impedance 3000?
Maximum SPL 110dB SPL (@ 1kHz, 1% THD into 1K? load)
Maximum Output Level 189.0dBu (@ 1kHz, 1% THD into 1K? load
Sensitivity -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted) 25dB-A
Weight 1.00gm
Dimensions 12.00mmH x 4.50mmW x 4.50mmD
Warranty 10 year warranty

Transmission type 2.4GHz Fixed Frequency Agile System
System dynamic range 112dB
Range (distance) 100m
Frequency range 35Hz - 22kHz
Maximum output level 1v Rms (2.8v P-p)
Max input signal level 1v Rms (2.8v P-p)
Max latency 4ms


Receiver (RX-CAM)

Power source 2 X AA Battery Or MicroUSB
Antenna Internal
Output connection 3.5mm TRS Locking Jack Socket - Dual Mono
Output impedance 300?
Dimensions 111mm X 65mm X 52mm
Weight 190gm

Transmitter (TX-BELT)

Power source 2 X AA Battery Or MicroUSB
Antenna Internal
Output connection 3.5mm TRS Locking Jack Socket
Output impedance 10k?
Dimensions 111mm X 65mm X 40mm
Weight 190gm

Lavalier

Acoustic Principle Pressure Gradient
Active Electronics JFET impedance converter
Capsule 0.10"
Address Type End
Frequency Range 60Hz - 18kHz
Output Impedance 3000?
Maximum SPL 110dB SPL (@ 1kHz, 1% THD into 1K? load)
Maximum Output Level 189.0dBu (@ 1kHz, 1% THD into 1K? load
Sensitivity -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted) 25dB-A
Weight 1.00gm
Dimensions 12.00mmH x 4.50mmW x 4.50mmD
Warranty 2 year warranty
