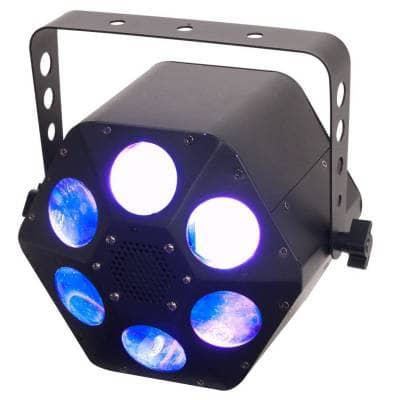

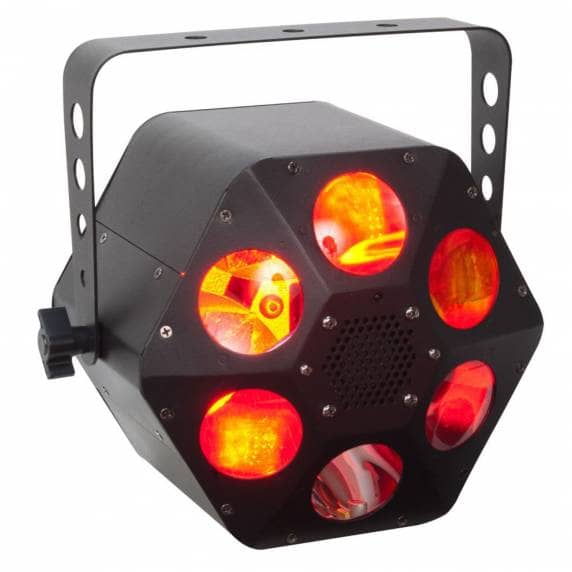

ADJ Quad Phase HP - High Output Moonflower Disco Effect Light

The ADJ Quad Phase HP is an advanced moonflower lighting effect engineered to transform any venue with its vibrant and razor-sharp beams. Utilising a powerful 32-watt 4-in-1 quad-colour LED source (RGBW), it delivers an impressive array of up to fifteen rich colours, ensuring a dynamic and captivating light show. This fixture is particularly well-suited for venues such as clubs, wedding receptions, parties, and dance stages, where creating an energetic atmosphere is paramount.

Designed with versatility in mind, the Quad Phase HP offers multiple operational modes, including DMX-512 for precise programming, sound-active mode for synchronisation with music, and master/slave configuration for coordinated performances across multiple units. Its 1.8-degree long-life stepper motor technology enables both rapid, accurate movements and smooth, fluid transitions, allowing for a range of effects that can adapt to the mood of any event.

The fixture's beam angle of 65 degrees ensures extensive coverage, filling dance floors, ceilings, or walls with ease. Additional features such as electronic dimming (0–100%), strobe and pulse effects, and fifteen preset colours provide lighting designers with a comprehensive toolkit to craft engaging visual experiences. Moreover, the Quad Phase HP's efficient LED technology allows it to run extremely cool, eliminating the need for duty cycles and enabling continuous operation throughout events.

Key Features:

• High-output moonflower effect with a 32-watt 4-in-1 quad-colour LED (RGBW)

• Produces up to fifteen vibrant colours for dynamic light shows

• 1.8-degree long-life stepper motor technology for precise and smooth movement

• Multiple operational modes: DMX-512, sound-active, and master/slave configurations

• 65-degree beam angle for wide-area coverage

• Electronic dimming from 0% to 100%, with strobe and pulse effects.

• No duty cycles required; capable of running all night without overheating

• 4-button DMX display on the rear panel for easy navigation and control

• IEC AC IN/OUT on the rear to daisy-chain power (up to 5 units at 120V and 9 units at 230V)

• Compatible with ADJ UC3 easy-to-use controller (sold separately)

Technical Specifications:

• Light Source: 32W RGBW LED 4-in-1

• LED Lifespan: Approximately 30,000 hours

• Beam Angle: 65 degrees

• DMX Channels: 4 (Colour, Rotation, Strobe, Shutter)

• Control Modes: DMX-512, sound-active, master/slave

• Dimming: Electronic, 0–100%.

• Strobe Effect: Yes, with pulse effect.

• Power Draw: 64W maximum

• Multi-voltage Operation: 100V–240V, 50/60Hz

• Connections: 3-pin XLR DMX in/out, IEC AC in/out

• Display: 4-button DMX display on the rear panel

• Cooling: Runs extremely cool; no duty cycles required

• Compatibility: Compatible with ADJ UC3 controller (sold separately)

• Safety Features: Safety hook on the rear panel.

Technical Specifications:

• Light Source: 32W RGBW LED 4-in-1

• LED Lifespan: Approximately 30,000 hours

• Beam Angle: 65 degrees

• DMX Channels: 4 (Colour, Rotation, Strobe, Shutter)

• Control Modes: DMX-512, sound-active, master/slave

• Dimming: Electronic, 0–100%.

• Strobe Effect: Yes, with pulse effect.

• Power Draw: 64W maximum

• Multi-voltage Operation: 100V–240V, 50/60Hz

• Connections: 3-pin XLR DMX in/out, IEC AC in/out

• Display: 4-button DMX display on the rear panel

• Cooling: Runs extremely cool; no duty cycles required

• Compatibility: Compatible with ADJ UC3 controller (sold separately)

• Safety Features: Safety hook on the rear panel.
