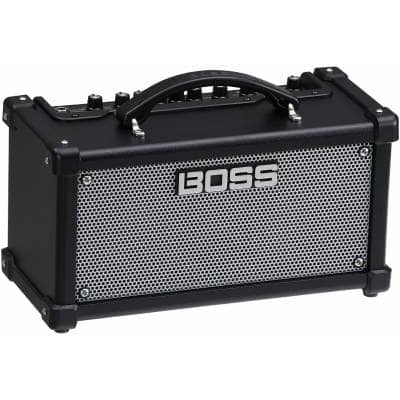

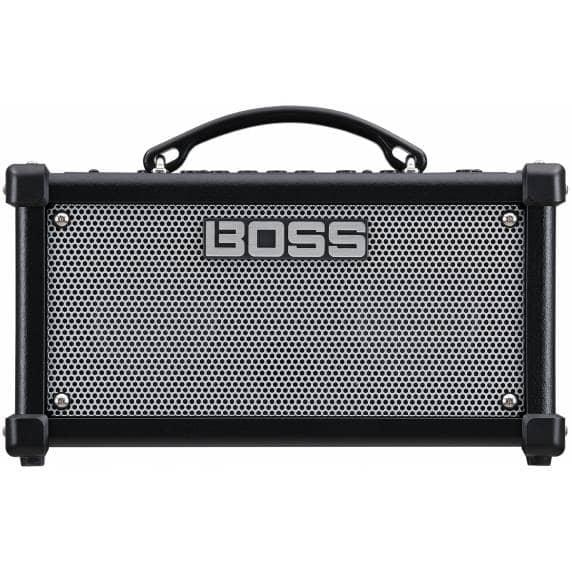

BOSS Dual CUBE-LX Guitar Amplifier

The Boss Dual-Cube LX is a compact and powerful amplifier with two custom-designed 4-inch speakers and a 10-watt stereo power amp (5 watts x 2) that delivers crystal-clear audio.

With eight newly developed guitar amp types plus one mic preamp type, the Dual-Cube LX provides unparalleled versatility and customization. And with seven onboard effects, you can create the perfect tone for any occasion. You can even edit these effects via the DUAL CUBE LX Editor app for even more control.

The Dual-Cube LX also features a stereo input mode with a wide, immersive sound for modelers and stereo pedals, a three-band equalizer, and the ability to store amp and effects settings in 27 memories (3 memories for each amp type).

Powered via AC adaptor (included) or eight AA batteries, the Dual-Cube LX also has a stereo line output with mic’d cab emulation, a phones/rec jack with support for an inline headphones microphone, and USB audio for direct recording and livestreaming. You can also use up to two external footswitches with the control jack.

Plus, with the i-CUBE Link/Aux In jack for audio playback and the selectable Loopback function for USB and i-CUBE Link/Aux In, you can easily integrate the Dual-Cube LX into your existing setup. And with the onboard looper (requires optional footswitch) and the connector for the optional Bluetooth® Audio MIDI Dual Adaptor (BT-DUAL), the Dual-Cube LX has everything you need to take your guitar playing up a gear!

Rated Power Output

10 W (5 W+5 W)

Nominal Input Level

GUITAR/STEREO IN L, R: -10 dBu (1 M ohm)

i-CUBE LINK/AUX IN: -20 dBu (15 k ohm)

Nominal Output Level

LINE OUT L/MONO, R: -10 dBu

Speakers

10 cm (4 inches) x 2

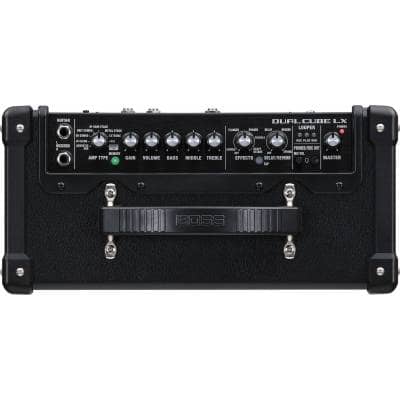

Controls

• POWER switch
• AMP TYPE knob (ACOUSTIC SIM, JC CLEAN, US COMBO, BRIT COMBO, HI-GAIN STACK, METAL STACK, EXTREME, MIC, STEREO IN)
• MEMORY button
• GAIN knob
• VOLUME knob
• BASS knob
• MIDDLE knob
• TREBLE knob
• EFFECTS knob (CHORUS, FLANGER, PHASER, TREMOLO, HEAVY OCTAVE)
• DELAY/REVERB knob (DELAY, REVERB, SPRING)
• TAP button
• MIC VOL knob
• MASTER knob
• LOOPBACK switch (i-CUBE LINK/AUX IN)
• LOOPBACK switch (USB)

Indicators

• POWER
• MEMORY
• TAP
• REC
• PLAY
• DUB

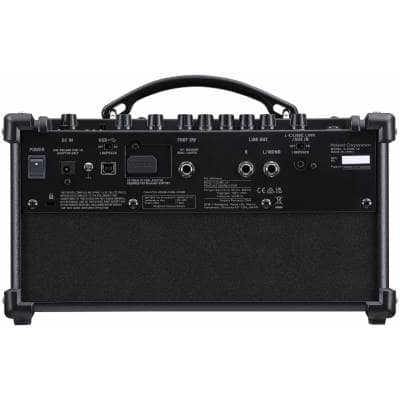

Connectors

• GUITAR jack/STEREO IN L, R jacks: 1/4-inch phone type
• PHONES/REC OUT jack: Stereo Miniature phone type (Stereo, CTIA)
• i-CUBE LINK/AUX IN jack: Stereo Miniature phone type (Stereo, CTIA)
• LINE OUT L/MONO, R jacks: 1/4-inch phone type
• FOOT SW jack: 1/4-inch TRS phone type
• Bluetooth ADAPTOR connector: Dedicated connector
• USB port: USB B type
• DC IN jack

Power Supply

• AC adaptor (DC 9 V)
• Alkaline battery (AA, LR6) x 8
• Rechargeable Ni-MH battery (AA, HR6) x 8

Current Draw

360 mA

Expected battery life under continuous use

Alkaline battery: Approximately 8 hours

Rechargeable Ni-MH battery: Approximately 10 hours (*1)

Included Accessories

• Owner's Manual
• Leaflet USING THE UNIT SAFELY
• AC adaptor
• Power cord
• Mini cable (4-pole miniature phone type)

Options (sold separately)

• Footswitch: FS-5U, FS-6, FS-7
• Bluetooth® Audio MIDI Dual Adaptor (MODEL BT-DUAL)
• Wireless MIDI Expression Pedal: EV-1-WL

SIZE AND WEIGHT:

• Width: 341 mm / 13-7/16 inches
• Depth: 162 mm / 6-7/16 inches
• Height: 215 mm / 8-1/2 inches
• Weight (excluding AC adaptor): 3.3 kg / 7 lbs 5 oz
