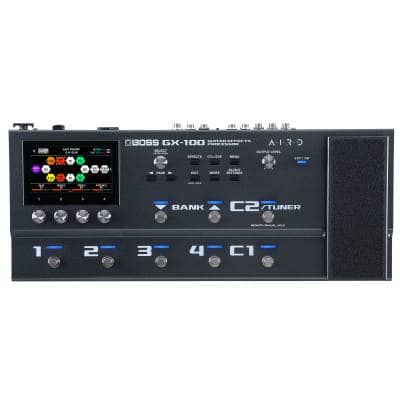

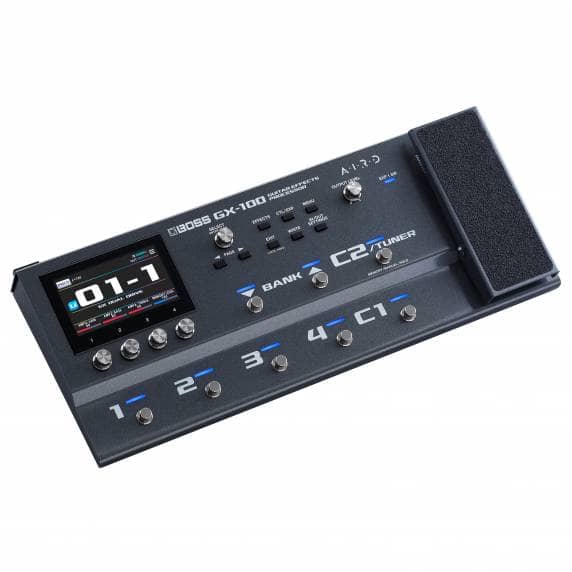

BOSS GX-100 Next-Gen Guitar Effects Processor

Welcome to the Cutting Edge!

Experience the next generation in guitar FX processing with the GX-100 from BOSS!

Bringing together BOSS' legendary tone technologies into one ultra-sleek, ultra-modern package, the GX-100 offers both the inspiration and hardware to make every performance the best one yet!

Drawing from a bank of 23 AIRD amplifiers and over 150 effects (derived from the flagship GT-1000), you can start crafting amazing new sounds in seconds thanks to the large and vibrant colour touch display. And with the ability to use up to 15 effect blocks at a time with real-time footswitch and expression pedal control - not to mention wide support for external controllers - there really are no limits to the creative potential on offer!

Uncompromising Authenticity

Thanks to the combination of AIRD technology and BOSS' refined Tube Logic approach, you will experience the stellar tone and the incomparable feel of a natural tube amp each and every time you play. AIRD Output Select types let you perfectly tailor the sound for any destination, whether it’s an amp input, FRFR monitor, or house PA. A wide selection of onboard speaker cabs are also available, plus slots for importing your own speaker IRs via USB.

Exceptional Effects

The GX-100 features a powerhouse of over 150 effects from BOSS' colossal library, a plentiful supply of overdrives, distortions, mod effects, delays and reverbs, plus a selection of BOSS classics like Slow Gear, Octave and more. The result is an engine that will allow you to bring to life nearly any sound you can imagine!

What's more, it offers a range of effects specifically designed for bass guitar.

Send/return jacks expand the huge content of the GX-100 even further, allowing you to fully integrate your favourite stomps or your amp's own effects loop into the infinite ecosystem of the GX-100!

Preset Paradise

The GX-100 comes with 100 preset memories onboard, so you can get started exploring the diverse range of incredible effects right out of the box. But with 200 user preset memories and 15 dedicated block types - including two amp blocks - you can create a bank of personal and easy to recall tones to suit any song or style, any time!

The Magic Touch

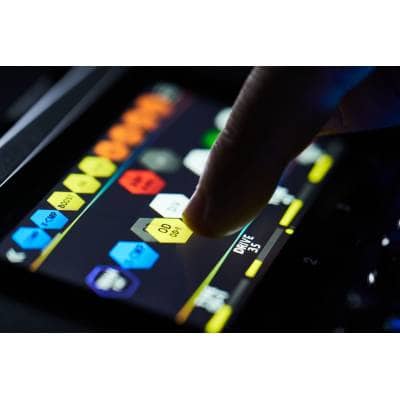

With a processor as rich and feature-packed as the GX-100, you need to be able to access and navigate as quickly and easily as possible and in this respect, BOSS have you well and truly covered! A vivid colour touch display allows for intuitive control of patch and effects selection, parameter tweaks, signal chain adjustments, and much more. The display works in harmony with the four knobs and page buttons on the panel, providing a frustration-free experience that keeps your attention focused on the music.

The GX-100 offers deep real-time control with eight custom footswitches and an expression pedal with toe switch. They come configured for patch/bank selection and patch-specific control, but you can freely reassign them to meet your unique needs. Switching into Manual mode provides direct stompbox-like control, and you can go even further with external control via footswitches, an expression pedal, or MIDI. There’s also a jack to remotely switch channels on your amp with memory selection or an assigned footswitch.

Just As Good Offstage

The GX-100 is amazing to use on-stage. But it excels just as much in the studio, doubling up as a powerful USB audio interface! Record straight into your favourite DAW, re-amp tracks and take advantage of top-tier sound monitoring whilst connecting to your computer.

The onboard looper is perfect for jamming, developing sounds and ideas, and extending your creative range while performing and an inbuilt headphone jack lets you enjoy creating and using new tones anywhere and at any time of night!

Go Deeper with BOSS Tone Studio

Using BOSS Tone Studio for macOS and Windows, you’re able to tweak every GX-100 parameter, save sounds, and organize Live Sets for different gigs from your computer. And with the optional Bluetooth® Audio MIDI Dual Adaptor, you can wirelessly adjust settings on the gig from the BOSS Tone Studio app on your mobile device and stream backing music from your device’s library.

Features at a glance:

• Powerful, easy-to-use amp/effects processor for guitar and bass

• 24-bit AD/DA, 32-bit floating-point processing, and 48 kHz sampling rate

• Authentic tube amplifier tone and touch response with AIRD technology

• 23 amplifier types and over 150 BOSS effects

• Ultra-flexible amp/effect routing with 15 assignable blocks

• Wide selection of onboard speaker types and support for loading WAV speaker IRs

• Streamlined modern design with intuitive color touch display and rugged metal chassis

• Unlimited effects control with freely assignable onboard footswitches and expression pedal with toe switch

• Connect up to two footswitches or an expression pedal for expanded control

• Send/return loop for external pedals or four-cable method

• Control jack for remote channel switching on your amplifier

• MIDI I/O jacks and multi-channel computer recording via USB

• Edit sounds from your computer with BOSS Tone Studio for macOS and Windows

• Optional Bluetooth® Audio MIDI Dual Adaptor allows you to edit sounds and stream audio from an iOS or Android mobile device

PHONES: 44 ohms

SEND: 1 k ohm

-Recommended Load Impedance

OUTPUT (L/MONO, R): 10 k ohms or greater

PHONES: 44 ohms or greater

SEND: 10 k ohms or greater

-Controls

BANK DOWN switch, BANK UP switch, CTL1 switch, CTL2/TUNER switch,

1--4 switches, POWER switch, EXP1 switch, GND LIFT switch

EFFECTS button, CTL/EXP button, MENU button, EXIT button, WRITE button, IN/OUT SETTINGS button, PAGE button,1--4 knobs,

SELECT knob, OUTPUT LEVEL knob, EXP1 pedal

-Display

Color Graphic LCD (480 x 272 dots) Touch screen

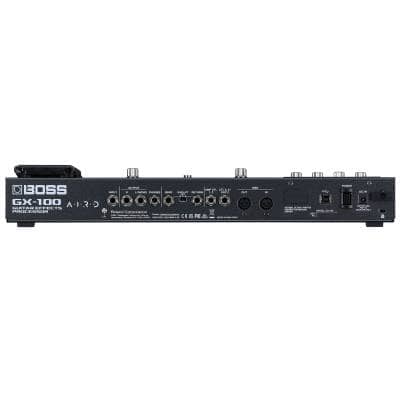

-Connectors

INPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type

PHONES jack: Stereo 1/4-inch phone type

CTL3, 4/EXP2 jack, AMP CTL1, 2 jack: 1/4-inch TRS phone type

MIDI (IN, OUT) connectors

USB COMPUTER port: USB B type

Bluetooth ADAPTOR connector: Dedicated connector

DC IN jack

-Power Supply

AC adaptor

-Current Draw

1.2 A

-Dimensions

460 (W) x 193 (D) x 73 (H) mm

18-1/8 (W) x 7-5/8 (D) x 2-7/8 (H) inches

Maximum height:

460 (W) x 193 (D) x 94 (H) mm

18-1/8 (W) x 7-5/8 (D) x 3-3/4 (H) inches

-Weight

3.5 kg

7 lbs 12 oz

-Accessories

AC adaptor (PSB-1U + AC Cord Set)

Owner's manual

Leaflet "USING THE UNIT SAFELY"

-Options (sold separately)

Footswitch: FS-5U, FS-5L, FS-6, FS-7

Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5

Bluetooth(R) Audio MIDI Dual Adaptor: BT-DUAL

*0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
