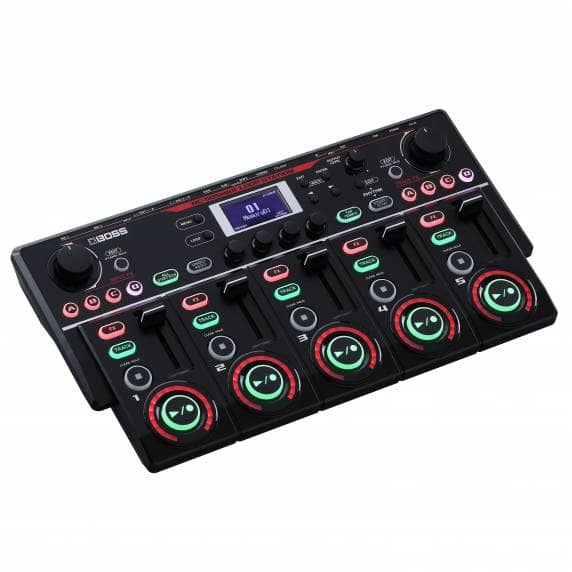

BOSS RC-505mkII Next-Generation Desktop Loop Station

Meet the RC-505MKII - the industry-standard tabletop looper, updated and enhanced!

Designed with improvised looping in mind, the RC-505MKII evolves the world’s favourite desktop looper with a burst of next-gen power and even more flexibility than ever.

Boasting 5 stereo tracks, unrivalled sound quality, a huge array of onboard effects and incredible levels of control, the RC-505mkII truly earns its place as the successor to a legend.

Take advantage of the colossal bank of onboard effects (49 Input FX and 53 Track FX) to add colour and definition to your creations. Four can be loaded up simultaneously, along with over 200 rhythm patterns in stunning high-definition 32-bit quality.

Customisable buttons, expanded I/O, increased mixing control and a range of other amazing enhancements – largely directed by the requests of RC-505 enthusiasts – make the RC-505mkII a true evolution and a goliath of a looper for any beatboxer, vocalist, multi-instrumentalist or other musician looking for the absolute best in class.

• The industry-standard tabletop looper, updated and enhanced

• Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing

• Five simultaneous stereo phrase tracks with dedicated controls and independent volume faders

• Input FX and Track FX sections, each with four simultaneous effects and four quick-access banks

• Customizable FX and Track buttons for each phrase track

• Massive onboard effects selection with 49 Input FX types and 53 Track FX types, including new Harmony, Electric FX, and many others

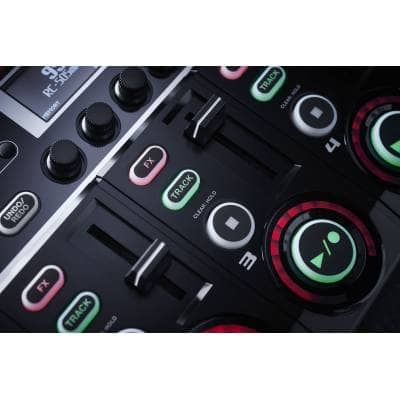

• New ultra-durable faders with longer throw for more precise adjustment

• Newly added Mark Back function provides enhanced undo/redo flexibility while performing

• Two XLR mic inputs with phantom power, two stereo line input pairs, and three stereo line output pairs

• 99 memories, each containing five phrase tracks, custom effects and playback settings, control assignments, and more

• Synchronize your loops with over 200 onboard rhythm patterns and 16 drum kits

• Deep MIDI control support

• Two external control jacks, each with support for up to two footswitches or an expression pedal

• USB for data backup, phrase import/export with BOSS Tone Studio, and pattern import with the RC Rhythm Converter

Sampling Frequency:  44.1 kHz

AD/DA Conversion:  32 bits

Processing:  32-bit floating point

Recording/Playback

Number of Tracks:  5

Data Format:  WAV (44.1 kHz, 32-bit float, stereo)

Maximum Recording Time:  Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)

Rhythm Type

200 types or greater

Rhythm Kit

16 types

Effect

INPUT FX:  49 types

TRACK FX:  53 types

MASTER FX:  2 types

Memory:  99

Nominal Input Level

MIC 1, 2 INPUT: -40 dBu

INST 1, 2 INPUT: -10 dBu

Maximum Input Level

MIC 1, 2 INPUT: 0 dBu

INST 1, 2 INPUT: +7 dBu/+20 dBu (selectable)

Input Impedance

MIC 1, 2 INPUT: 3k ohms

INST 1, 2 INPUT: 1 M ohms/25 k ohms (selectable)

Nominal Output Level

MAIN OUTPUT: -10 dBu

SUB 1, 2 OUTPUT: -10 dBu

Maximum Output Level

MAIN OUTPUT: +7 dBu

SUB 1, 2 OUTPUT: +7 dBu

Output Impedance

MAIN OUTPUT: 1 k ohm

SUB 1, 2 OUTPUT: 1 k ohm

Recommended Load Impedance

MAIN OUTPUT: 10 k ohms or greater

SUB 1, 2 OUTPUT: 10 k ohms or greater

Controls

TRACK1--5 REC/PLAY button, TRACK1--5 STOP button, TRACK1--5 TRACK button, TRACK1--5 FX button, ALL START/STOP button, UNDO/REDO button, TAP TEMPO button, RHYTHM START/STOP button, RHYTHM EDIT button, INPUT FX A--D button, INPUT FX EDIT button, TRACK FX A--D button, TRACK FX EDIT button, MENU button, LOOP button, ENTER button, EXIT button, PAGE buttons, 1--4 knobs, OUTPUT LEVEL knob, TRACK1--5 LEVEL Faders

Display

Graphic LCD (128 x 64 dots, backlit LCD)

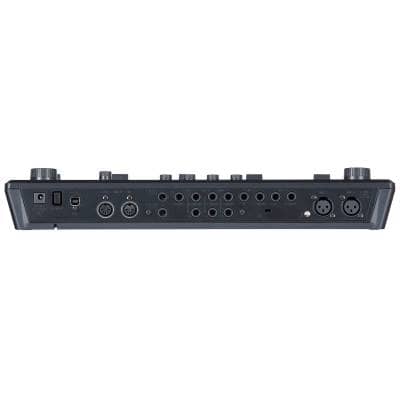

Connectors

MIC IN 1, 2 jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max

INST IN 1, 2 jacks, MAIN OUT jacks, SUB OUT 1, 2 jacks: 1/4-inch phone type

PHONES jack: Stereo 1/4-inch phone type

CTL1,2/EXP1 jack, CTL3,4/EXP2 jack: 1/4-inch TRS phone type

USB port: USB B type

MIDI (IN, OUT) connectors

DC IN jack

Power Supply:  AC adaptor

Current Draw

1.0 A (with phantom power)

0.9 A (without phantom power)

Dimensions

420 (W) x 234 (D) x 67 (H) mm

16-9/16 (W) x 9-1/4 (D) x 2-11/16 (H) inchesE

Weights

1.8 kg

4 lbs

Accessories

AC adaptor

Owner's Manual

Leaflet "USING THE UNIT SAFELY"

Options (sold separately)

Footswitch: FS-5U

Dual Footswitch: FS-6, FS-7

Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5

* 0 dBu = 0.775Vrms
