Chord SU20 Compact Dual UHF Wireless Microphone Set (Handheld 864.8+863.1)
  • Chord SU20 Compact Dual UHF Wireless Microphone Set (Handheld 864.8+863.1)
  • Chord SU20 Compact Dual UHF Wireless Microphone Set (Handheld 864.8+863.1)
  • Chord SU20 Compact Dual UHF Wireless Microphone Set (Handheld 864.8+863.1)
  • Chord SU20 Compact Dual UHF Wireless Microphone Set (Handheld 864.8+863.1)
  • Chord SU20 Compact Dual UHF Wireless Microphone Set (Handheld 864.8+863.1)

Chord SU20 Compact Dual UHF Wireless Microphone Set (Handheld 864.8+863.1)

Code: 171.908-DS
0 Stars 0 reviews

Read Reviews

  • Ultra-compact dual microphone set
  • Supplied with 2 x handheld microphones

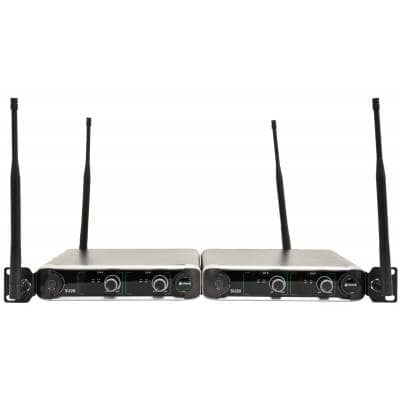

  • Up to 2 sets (4 microphones) can be used together
  • Front or rear mountable antennas
  • Supplied with power adaptor and 4 x AA batteries
Read Full Description
RRP: £129.00 (inc. VAT)
Save: 23%
Your Price: £99.00 (inc. VAT)
Item in Stock  |  Usually dispatched within 24 hours
  • Delivery Information
  • Standard Delivery - (FREE UK Delivery)
  • Express Delivery Available
Add to Bag
This product has been added to your basket...
  • Continue Shopping
  • Checkout

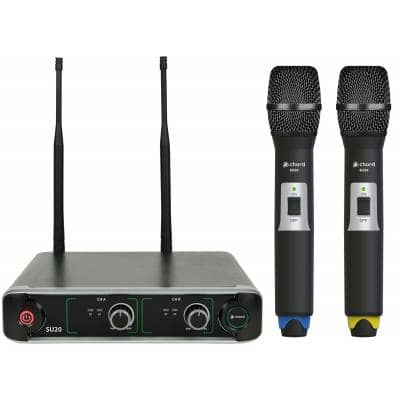

Chord Dual UHF wireless microphone system with handheld microphones perfect for live entertainment and speech.

Each microphone transmitter is powered by 2 x AA batteries and has a 60-metre range (line-of-sight).

The output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket for connecting to an amplifier, mixer or active speaker.

Providing all the functionality of a dual UHF system in a compact half-rack format; ideal for environments where space is at a premium!


The box for this item contains :

  • SU20 half-rack dual UHF receiver
  • 1 x short rack ear
  • 1 x long rack ear

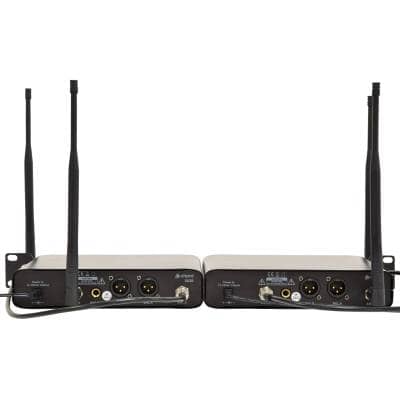

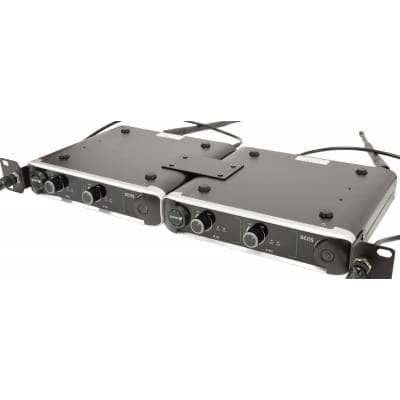

  • 1 x coupling plate for 2 receivers
  • 2 x BNC antennas
  • 2 x BNC antenna extension leads
  • 2 x handheld transmitters or beltpacks with neckband & lavalier mics
  • 14Vdc 350mA power adaptor
  • 6.3mm jack lead

Power supply: 14Vdc 350mA (adaptor supplied)

Antenna connection: BNC

Batteries: 4 x AA (2 per transmitter) included

Range: 60m

Microphone : polar pattern: Cardioid (handheld, neckband or lavalier)

Output connections: 2 x balanced XLR, 1 x unbalanced 6.3mm jack

Output impedance: 2.2k Ohms

Output level: 400mV (balanced), 200mV (unbalanced)

Frequency response: 50Hz - 18kHz (±3dB)

S/N ratio: >80dB

THD: <0.5% @ 1kHz

Dimensions : receiver: 203 x 187 x 42mm

Weight : receiver: 845g

Dimensions : handheld transmitter: 250 x 47mmØ

Weight : handheld transmitter: 231g (no battery)

Carrier frequencies: 864.8MHz (Blue) + 863.1MHz (Yellow)
