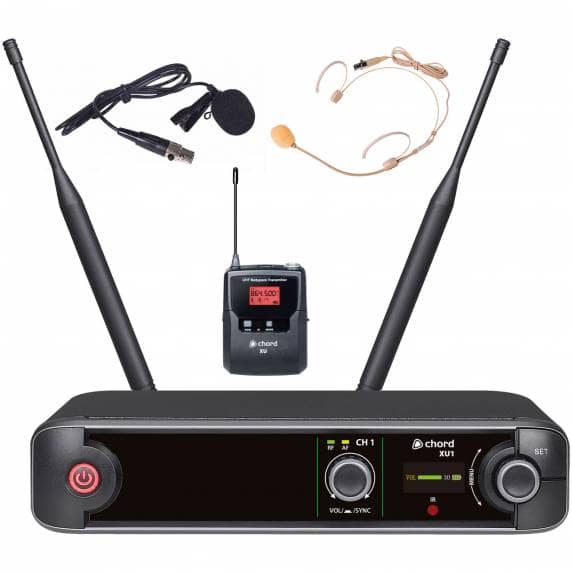

Chord XU1 Single Channel Headset/Lapel Wireless Microphone System

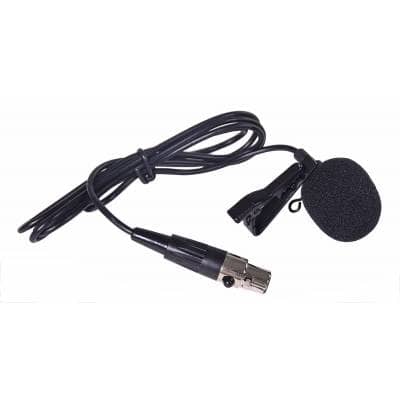

The Chord XU1 wireless system offers reliable, licence-free UHF operation in a compact, easy-to-use package. Supplied with a single beltpack transmitter, this system includes both a lavalier and neckband microphone, giving you flexible options for hands-free speech, vocals, or presentations.

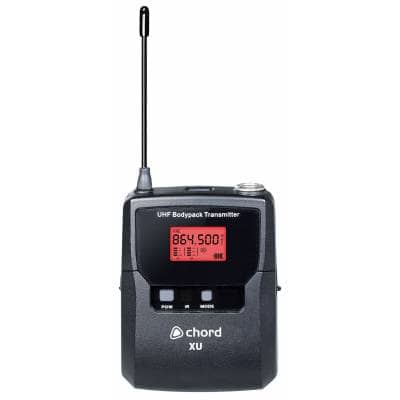

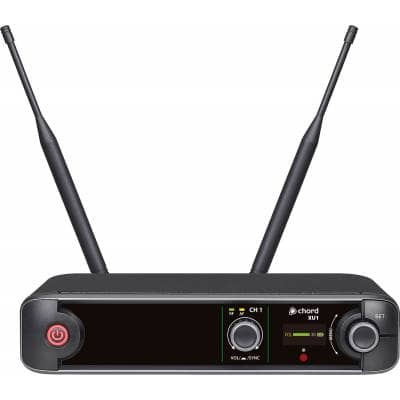

The receiver is a half-width 1U rack design, with true diversity dual antennas for stable signal reception. Its front panel features a TFT colour display for frequency settings, level monitoring, and channel identification. The included beltpack transmitter has a clear LCD screen showing frequency and battery level, while its backlight colour can be adjusted for easy identification when using multiple systems.

Designed for venues, fitness instructors, corporate presentations, and houses of worship, the XU1 delivers professional features in a simple, reliable system. The receiver offers balanced XLR and mix outputs, with easy IR sync to quickly pair transmitters to the receiver.

 Key Features:

• Compact half-width 1U rack receiver
• True diversity antennas with internal distribution
• 10 groups of 9 selectable UHF carrier frequencies
• Selectable backlight colours on transmitter LCD
• 1 x XLR output and 1 x 6.3mm mix output
• IR sync from receiver to transmitter settings
• Colour TFT display on the receiver

Included in the box:

• XU-series true diversity UHF receiver
• 1 x Beltpack transmitter, lavalier and headset microphone
• 2 x UHF antennas
• 2 x BNC antenna extension leads
• Rack-mounting brackets for 1 or 2 receivers in a 19" 1U space
• UK power adaptor
• 6.3mm male to male cable
• 2 x AA batteries

• Weight: lavalier microphone 23g
• Dimensions: lavalier microphone 27 x 12mmØ
• Weight: neckband microphone 28g
• Dimensions: neckband microphone 180 x 140 x 60mm
• Weight: beltpack transmitter 74g (no battery)
• Dimensions: beltpack transmitter 90 x 60 x 25mm
• Power supply: 12-18Vdc, 500mA (mains adaptor supplied)
• Batteries: 2 x AA per transmitter
• Carrier frequencies: 823-832 / 863-865MHz
• Wireless range: Up to 60m
• Antenna connection: 2 x BNC
• Dimensions: receiver: 205 x 205 x 44mm
• Weight: receiver: 755g
