Clever Acoustics CS 520HP 100V 5" 20W Ceiling Speaker
  • Clever Acoustics CS 520HP 100V 5" 20W Ceiling Speaker
  • Clever Acoustics CS 520HP 100V 5" 20W Ceiling Speaker
  • Clever Acoustics CS 520HP 100V 5" 20W Ceiling Speaker
Clever Acoustics

Clever Acoustics CS 520HP 100V 5" 20W Ceiling Speaker

Code: CRSP11
0 Stars 0 reviews

Read Reviews

  • High-output ceiling speaker for background music & speech
  • Coaxial, 2-way design delivers a wide frequency response
  • Multiple 100V power tappings plus low impedance
  • Flush-mount dog-ear clips for easy installation
  • 3-Year warranty
Read Full Description
RRP: £39.00 (inc. VAT)
Save: 28%
Your Price: £28.00 (inc. VAT)
Item in Stock  |  Usually dispatched within 24 hours
  • Delivery Information
  • Standard Delivery - (Delivery from £2.99 (inc. VAT) )
  • Express Delivery Available
Add to Bag
This product has been added to your basket...
  • Continue Shopping
  • Checkout

The Clever Acoustics CS 520HP is a high-output ceiling loudspeaker with extended frequency response, ideal for playback of music and speech reinforcement where audio quality is important.

The CS HP series of loudspeakers utilise a coaxial design complete with HF tweeter for crystal-clear high tones plus metal enclosure for enhanced low frequencies.

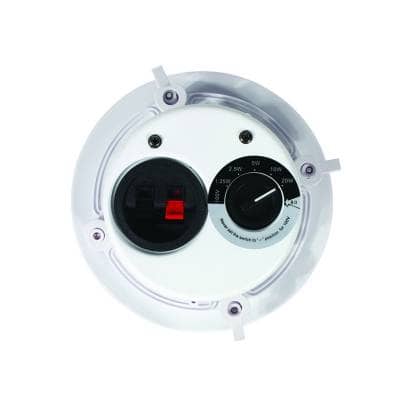

This high-quality 5" ceiling speaker features a rotary switch for selecting the desired power output. The CS 520HP is suitable for either low impedance (8 Ohms) or 100V Line operation with multiple power tappings of 1.25W, 2.5W, 5W, 10W, 20W.

Installation is made quick and easy thanks to dog-ear retaining clips. A cut-out template is also supplied for aid of installation.


Key Features

  • 3 year warranty
  • Coaxial, 2-way design delivers a wide frequency response
  • Multiple power taps plus low impedance
  • Rotary power tap
  • Metal grille, ABS baffle and metal enclosure
  • Flush mount dog-ear retaining clips for easy installation
  • Spring terminals for simple installation
  • Supplied with template to aid installation

Input: 100V, 8Ω

Power taps @ 100V: 1.25W, 2.5W, 5W, 10W, 20W

Impedance: 4KΩ, 2KΩ, 1KΩ, 500Ω, 400Ω

Power (RMS): 20W @ 8Ω

Sensitivity (1W/1m): 88dB (±3dB)

Maximum SPL (Rated W/1m): 101dB

Frequency response: 100Hz-20kHz

Drivers: 5" LF, 1.5" HF

Connections: 2 x spring terminals

Cutout: 180mmØ

Mounting depth: 128mm

Dimensions: 152 x 202mmØ

Weight: 1.4kg
