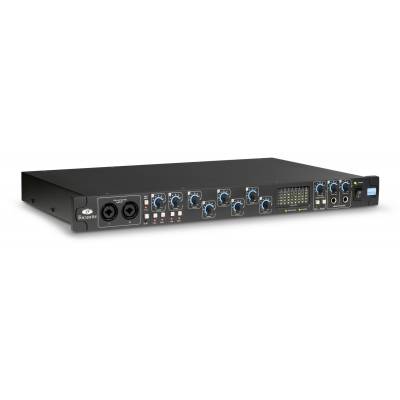

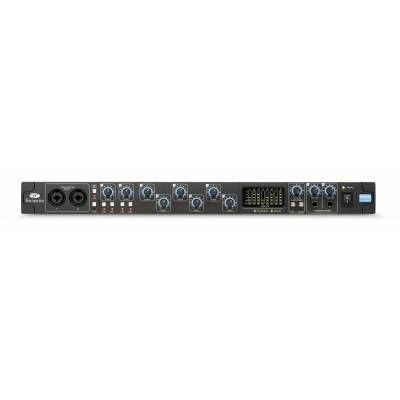

Focusrite Saffire Pro 40 Firewire / Thunderbolt Audio Interface

Focusrite Saffire Pro 40 Firewire / Thunderbolt Audio Interface - Represents the new generation of Focusrite multi-channel firewire audio interfaces. It is the best sounding saffire interface in its class; attentively designed by Focusrite with today’s project studio in mind.

Why Focusrite?

Focusrite's unparalleled pre-amp legacy forms the foundation of this new saffire interface, with eight award-winning Focusrite pre-amps. These are combined with the very latest in firewire interfacing technology to deliver seamless integration, excellent routing flexibility and future-proof, rock-solid driver stability.

With Saffire PRO 40, sonic integrity reigns supreme. The eight Focusite pre-amps ensure low noise and distortion, whilst quality digital conversion and JetPLL™ jitter elimination technology ensure pristine audio quality as your audio flows between the analogue and digital domains of your Saffire Pro 40.

• Eight High Quality Award-winning Focusrite Pre-amps
  The best sounding interface in its class. Focusrite's unparalleled pre-amp legacy forms the foundation of this new interface, with eight award-winning Focusrite pre-amps.
• High Quality 24-bit/96kHz Firewire Interface
  Features high quality A-D / D-A conversion and JetPLL™ jitter elimination technology; pristine audio quality and reliable synchronisation are guaranteed.
• Total I/O Count of 20 Inputs and 20 Outputs
  A host of i/o options are provided*, including a unique loop-back facility for routing audio between software applications via Saffire PRO 40 Control.
• The Focusrite Plug-in Suite
  Upgrade your standard sequencer effects and bring a touch of class to your session with all-new Focusrite Compression, Reverb, Gating and EQ VST/AU plug-ins.
• Two separate headphone buses
  Two artists can receive independent and fully customised monitor mixes. Each output has an independent level control available on the front panel.
• Saffire PRO 40 Control Zero-latency DSP Mixer/Router
  Routing flexibility and intuitive one-click set-up solutions; Saffire PRO 40 Control provides an 18 x 16 DSP mixer with excellent output routing and monitoring capabilities.
• Unmatched routing flexibility
  Saffire PRO 40 is the most flexible interface in its class, able to adapt to any recording session quickly and intuitively. The user is able to route any input signal or DAW output, or a mix of both, to any of the 20 outputs.

SYSTEM REQUIREMENTS

WINDOWS

Operating System
Microsoft Windows XP SP2 (32 bit and 64 bit) and Windows Vista (32 bit and 64 bit - an update is required for use with Vista 64. This can be downloaded from here.)

CPU/Clock
900MHz AMD or Pentium. (1.5 GHz or higher recommended)

Memory (RAM)
512 MB (more recommended)


APPLE MAC

Operating System
OSX (10.4 and 10.5)

CPU/Clock
PowerPC G4/Dual 1 GHZ or faster or any Intel-based Mac

Memory (RAM)
512 MB (more recommended)


PERFORMANCE SPECIFICATIONS

Microphone Inputs
• Frequency Response: 20Hz - 20kHz +/- 0.1 dB
• THD+N: 0.001% (measured at 1kHz with a 20Hz/22kHz bandpass filter)
• Noise: EIN > 125dB (128dB analogue to digital) (measured at 60dB of gain with 150 Ohm termination (20Hz/22kHz bandpass filter)

Line Inputs
• Frequency Response: 20Hz - 20kHz +/- 0.1dB
• THD+N: < 0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter)
• Noise: -90dBu (22Hz/22kHz bandpass filter)

Instrument Inputs
• Frequency Response: 20Hz - 20kHz +/- 0.1dB
• THD+N: 0.004% (measured with 0dBu input and 20Hz/22kHz bandpass filter)
• Noise: -87dBu (20Hz/22kHz bandpass filter)

Conversion performance
• Dynamic Range = 110dB (A-wieghted)
• Clock jitter < 250 picoseconds
• THD+N AMPL = -109dBFS 'A' weighted

Front and Rear Connectivity

Analogue Channel Inputs (Inputs 1-8)
• 2 Mic/Line/Inst Combo XLR (Inputs 1 and 2)
• 6 Mic/Line Combo XLR (Inputs 3-8)
• Automatic switching of Mic / Line (e.g. inserting a jack switches from Mic to either Line or Instrument)

Digital Channel Inputs (Inputs 9-18) 44.1-96kHz
• Stereo S/PDIF input on RCA
• 8 ADAT inputs on Optical Connector, reduces to 4 inputs at 88.2/96kHz • Optical input can be switched to S/PDIF 3/4 in software preferences (ADATs disabled)

Analogue Audio Outputs (Outputs 1-10)
• 8 ¼” TRS Jack (Outputs 3-10)
• 2 monitor mix outputs on ¼” TRS Jack (Outputs 1 and 2)
• Stereo headphones mix 1 on ¼” TRS (also routed to outputs 7 & 8)
• Stereo Headphones mix 2 on ¼” TRS (also routed to outputs 9 & 10)

Digital Channel Outputs (Outputs 11-20) 44.1-96kHz
• Stereo S/PDIF output on RCA
• 8 ADAT outputs on Optical Connector, reduces to 4 outputs at 88.2/96kHz • Optical output can be switched to S/PDIF 3/4 in software preferences (ADATs disabled)

Other I/O
• 2 6-pin Firewire sockets
• 2 Standard 5-pin DIN MIDI connectors: In and Out
• IEC mains power input connector

Weight and Dims
• 3kg / 6.6Ibs
• 482mm / 19" (W) x 45mm / 1.8" (H) x 265mm /10.4" (D)
