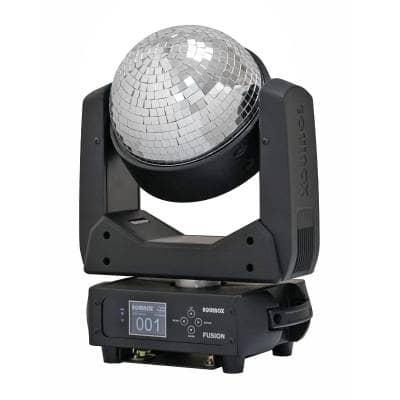

Equinox Fusion Reflecta - Multi-Application Moving Head

The Fusion Reflecta is a versatile moving head fixture designed to enhance any light show.

It combines a flat reflective mirror, a half mirror ball, and an LED ring to add an extra dimension to your lighting setup.

The flat mirror, with a diameter of 178mm, reflects high-power beam effects across venues. With a simple change in DMX value, the mirror flips 180 degrees to reveal the mirror ball, which disperses light into numerous shards when illuminated by a suitable fixture.

The mirror ball features variable rotation speed and continuous 360° tilt.

Additionally, 50 tri-colour LEDs are fitted around the outer edge of the flat mirror in a ring format, further boosting the fixture’s versatility.

Specifications:

• Power consumption: 30W
• Power supply: 100~240V, 50/60Hz
• Fuse: F2A 250V
• Dimensions (H x W x D): 403 x 304 x 217mm
• Weight: 8kg

Features:

• 1 x Half mirror ball (200mmØ)
• 1 x Flat mirror (178mmØ)
• Highly reflective mirrors with 99% reflection
• 50 x tri-colour 5050 SMD LEDs (RGB)
• DMX channels: 3/5/8/13/16/85 or 88 selectable
• Manual mode
• Pan/tilt auto correction
• 16-Bit pan/tilt positioning
• Pan: 540°, Tilt: 360° continuous
• 360° continuous mirror ball rotation in both directions
• Quick release omega clamps included
• Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations
• 4 button menu with 2.6” LCD display
• PowerTwist TR1 input/output
• 3-Pin XLR input/output
• 5-Pin XLR input/output
• Convection cooled

Specifications:

• Power consumption: 30W
• Power supply: 100~240V, 50/60Hz
• Fuse: F2A 250V
• Dimensions (H x W x D): 403 x 304 x 217mm
• Weight: 8kg
