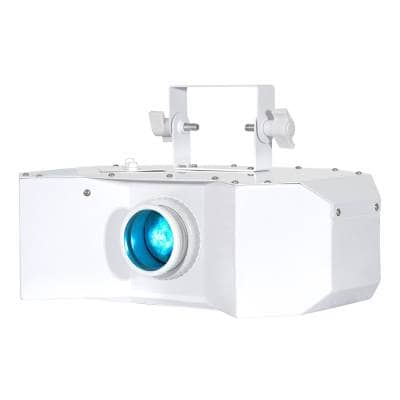

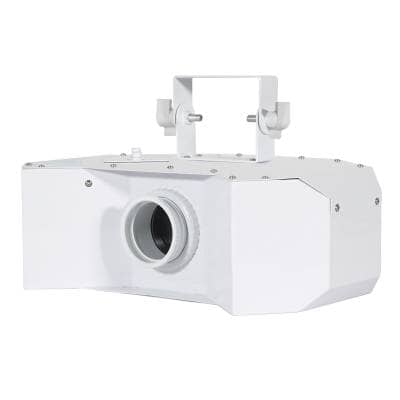

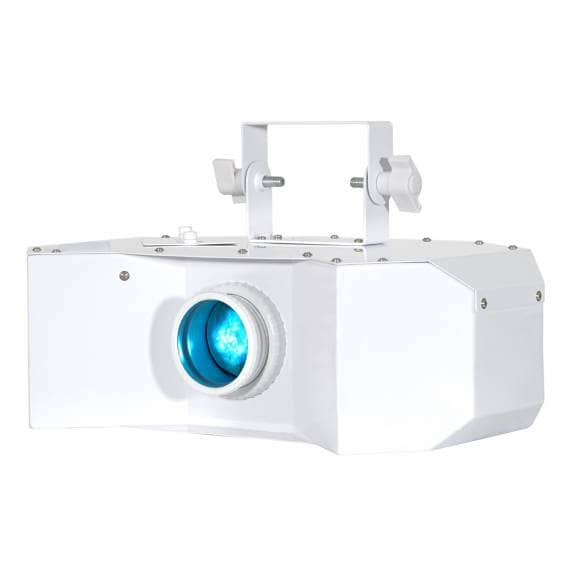

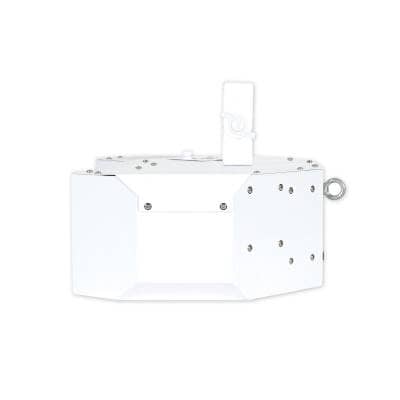

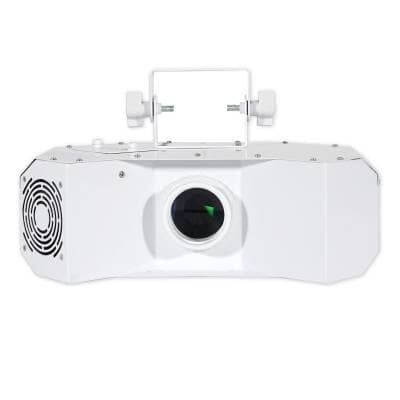

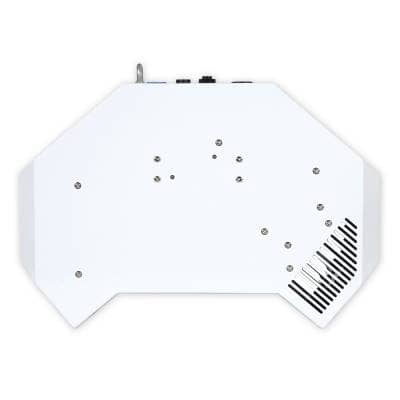

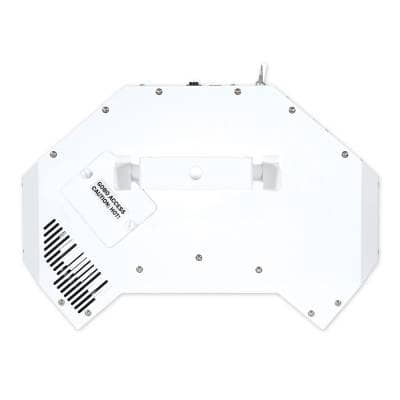

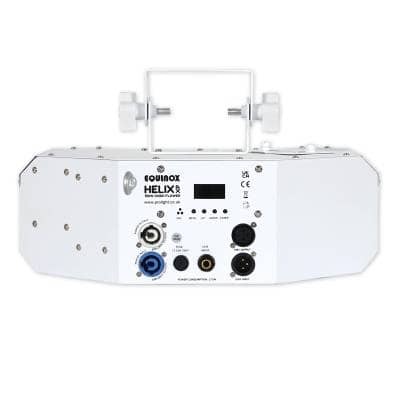

Equinox Helix XP - 150W GOBO Flower (White Housing)

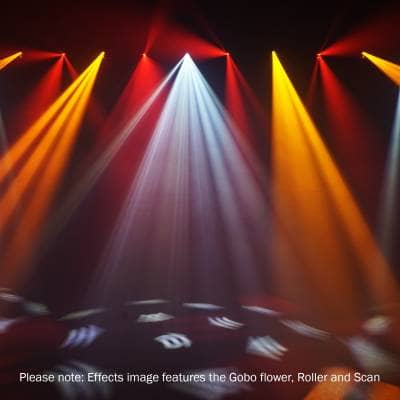

The Equinox Helix XP produces massive showers of moving, dazzling GOBOs that reflect onto walls and dance floors.

Powered by an exceptionally bright 150W LED, the Helix generates rich, saturated colours and features an 11-piece GOBO pack with a carefully selected range of patterns such as hearts and snowflakes, making it an ideal choice for a wide range of occasions and events, from Weddings and Valentine's parties to Christmas celebrations and beyond.

All 8 gobos are interchangeable along with a separate colour wheel featuring 9 colours plus open.

Clever programming allows for specific GOBOs to be removed from the standalone and sound-active programs, as well as allowing for single GOBOs to be selected with specific colours from the colour wheel added to them manually whilst being activated automatically or via sound.

The unit, although compact in size, has a wide beam angle but still packs a punch over a long distance thanks to its superior optics and high-output LED.

The Helix XP can be linked with the Helix Scan XP and Helix Roller XP to create synchronised shows.

Key Features:

• 1 x 150W cool white LED (7,200K)
• Beam angle: 42°
• Manual focus
• 8 rotating, replaceable gobos
• 9 colours + open
• DMX channels: 2/6 or 8 selectable
• Auto, sound active and master/slave modes plus built-in programs
• 0-100% dimming
• Variable strobe
• Optional CA 8 controller
• Supplied with dual position mounting bracket
• 4 button menu with LED display
• PowerTwist input/output
• 3-Pin XLR input/output
• Fan cooled
• Supplied with an additional gobo pack containing 11 popular gobos
• Linkable with the Helix Scan XP and Helix Roller XP

• Power consumption: 175W
• Power supply: 100~240V, 50/60Hz
• Fuse: T3.15A 250V
• Dimensions (H x W x D): 205 x 370 x 273mm
• Weight: 4.8kg
