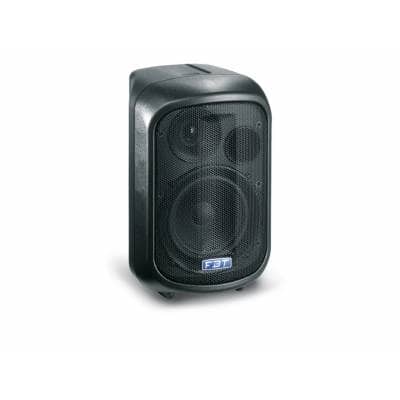

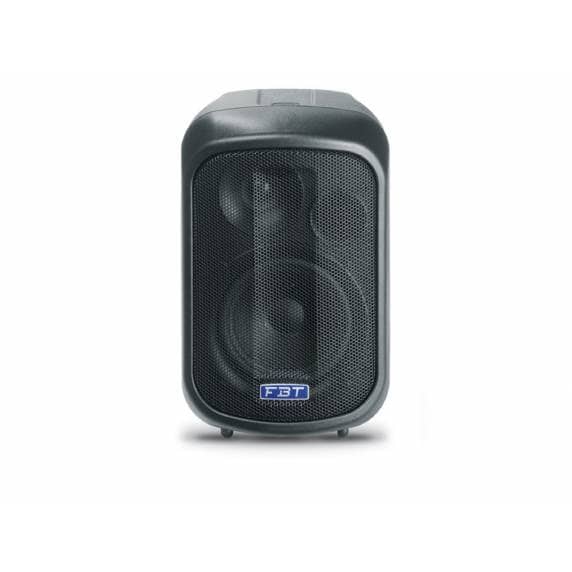

FBT J5 5" Passive Install PA Speaker, Black - 16 Ohm, 40W

The FBT J5 series speakers feature lightweight, yet rugged gas-injected molded polypropylene cabinet construction.

Available in black or white finish the FBT J5 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor.

With the use of optional accessories the FBT J5 speakers can be mounted on mic stands for many nearfield monitor applications, live sound and as a studio monitor.

The FBT J5 is of two way design incorporating an 5" low frequency woofer and 1" HF custom compression driver. Cabinet dispersion is 90°H x 90°V allowing for wide pattern coverage. The internal crossover is at a fixed frequency of 3.5kHz. With a frequency range of 90Hz - 20kHz the FBT J5 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 117dB.

A front face steel grille protects the speaker from external damage.

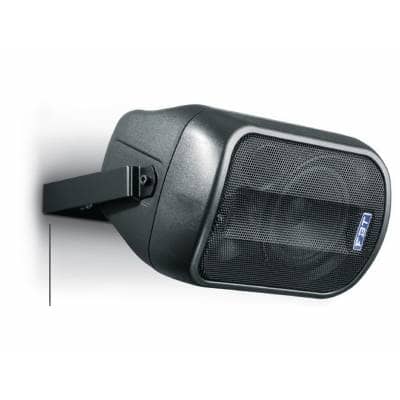

Ideal for small fixed installations the FBT J5 speaker system have an impedance of 16 Ohm allowing four FBT J5 speakers to be utilised per channel, for a total of eight J5 speakers when used with a stereo power amplifier capable of operating at 4 Ohm. The two M6 fly points built into the cabinets along with the optional mounting brackets allow the FBT J5 speakers to be surface mounted on walls or ceiling.

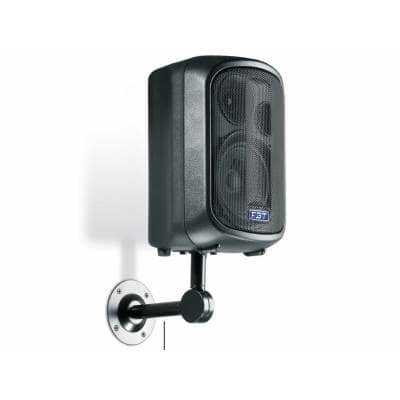

For portable or fixed use the FBT J5 speakers can be mounted on mic stands by using the optional adapters for vertical mounting. Rear panel connections feature both a female 1/4" input jack and push pin terminal connectors which are internally connected in parallel providing various wiring options for the installer.

FBT J5 Passive PA Speaker Key Features:

• 2-way passive sound reinforcement system
• Polypropylene enclosure
• 1 x 5" custom woofer
• 1 x 1" neodymium silk dome tweeter
• 80W RMS recommended amplifier
• 40W long term power
• 160W short term power IEC 268-5
• 2 x M6 suspension points
• Internal passive crossover filter
• Input panel with jack and terminal connector
• Available in white colour
• Completely manufactured in Italy

Configuration: 2 Way

Frequency response: 90Hz - 20kHz

Low frequency woofer: 5" with 1" VC

High frequency driver: 1" Dome Tweeter

Maximum SPL cont/peak: 114/117 dB

Dispersion: 90 x 90 (HxV)

Input impedance: 16ohm

Crossover frequency: 3.5kHz

Input connector: Jack + Terminal

Net Dimension (WxHxD): 170 x 275 x 180mm / 6.69 x 10.82 x 7.08in

Net Weight: 3.4kg / 7.49lb

Transport Dimension (WxHxD): 240 x 345 x 235mm / 9.44 x 13.58 x 9.25in

Transport Weight: 4.2kg / 9.25lb
