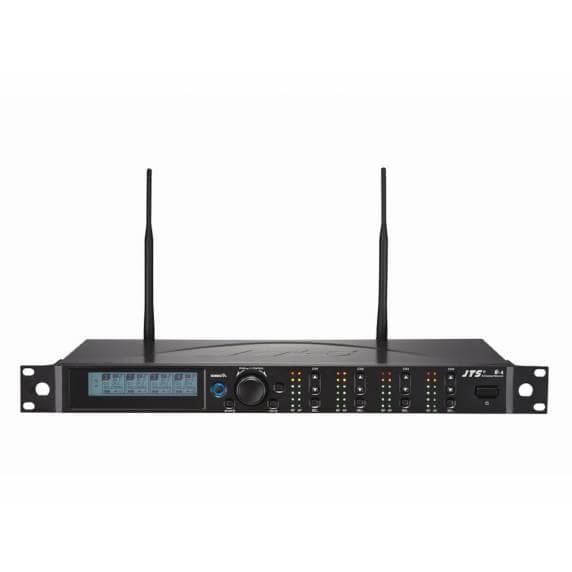

JTS R-4 Quad 4-Channel Wireless UHF Microphone Receiver - 606.5-638MHz

The JTS R-4 is features the newest generation of quad multi-channel wireless technology, designed to deliver superior performance and convenience in demanding audio environments.

Housed in a sleek 1U, 19" rack mount chassis, the R-4 features four channels, making it a powerful and efficient solution for professional audio applications.

Advanced Wireless Technology

The JTS R-4 is engineered with the latest wireless technology to navigate the increasingly crowded radio spectrum, providing more compatible channels within limited bandwidth. This ensures reliable and high-quality audio transmission in various settings such as:

• Live Performances: Offers clear and uninterrupted audio for concerts and stage productions.
• Theatres: Ensures seamless sound quality for theatrical performances.
• Broadcasting: Provides stable and high-fidelity audio for live broadcasts.
• Places of Worship: Delivers articulate and powerful sound for sermons and musical performances.

JTS R-4 Key Features:

• 4 Channels in 1U Rack Mount Chassis: Efficiently designed to fit into standard 19” rack mounts, saving space while providing robust functionality.

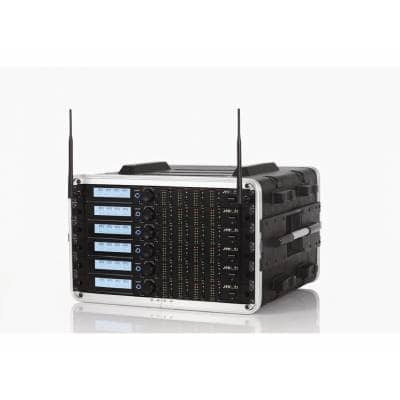

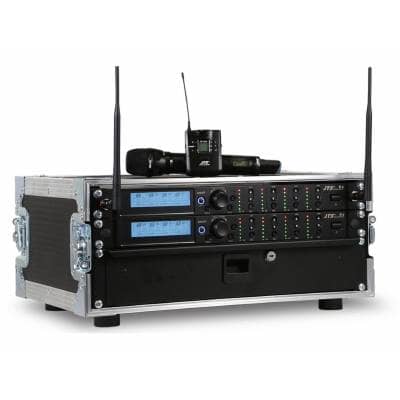

• Cascadable Antenna Outputs and AC Power Supply: Simplifies installation and ensures optimal performance with the ability to cascade multiple units.
• Patented REMOSET Feature: Allows for all microphone data to be sent with a single button push, synchronizing all four microphones simultaneously for quick and easy setup.
• Detailed Adjustment Options: Provides comprehensive controls to fine-tune audio and radio performance, ensuring the best possible sound quality.

The JTS R-4 Quad 4-Channel Wireless UHF Microphone Receiver combines cutting-edge technology with user-friendly features, making it the ideal choice for professional audio environments that demand reliability, clarity, and convenience.

• Frequency Preparation: PLL Synthesized Control

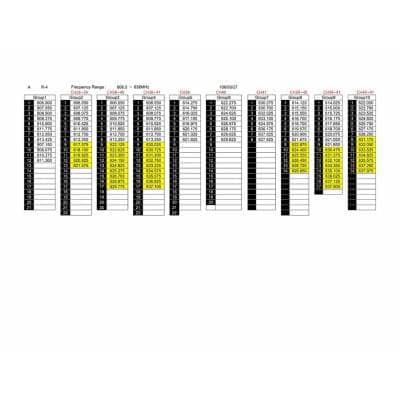

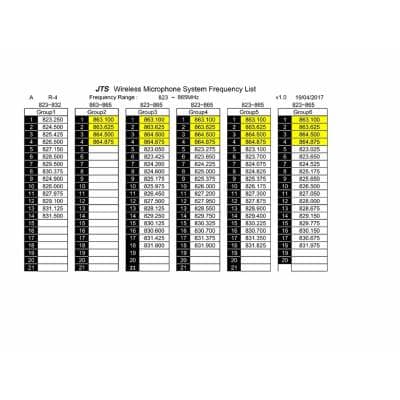

• Carrier Frequency Range: Options of 606.5 - 638MHz or 823 - 865MHz

• S/N Ratio: > 105dB

• T.H.D.: <0.6%@1KHz

• Display Contents: Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter (LED BAR), RF Meter (LED BAR) , Battery Status

• Controls: Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad

• Audio Output Level: -12dB

• AF Output Impedance: 600Ω

• Squelch: Pilot Tone & Noise Mute

• Operation Voltage: 12V 1A

• Output Connectors: 4 independent XLR outputs, and 1 Ø6.3mm and 1 XLR for mixed output

• Dimension(mm): 212.3(W)x38.3(H)x144(D)
