Monacor PA-12040 4 Zone 480W Mixer Amplifier - 100V Line/8 ohm
  • Monacor PA-12040 4 Zone 480W Mixer Amplifier - 100V Line/8 ohm
  • Monacor PA-12040 4 Zone 480W Mixer Amplifier - 100V Line/8 ohm

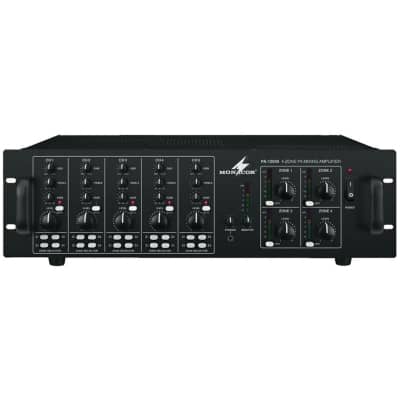

Monacor PA-12040 4 Zone 480W Mixer Amplifier - 100V Line/8 ohm

Code: PA-12040
480W 4-Zone Amplifier with Volume & EQ controls
0 Stars 0 reviews

Read Reviews

  • Perfect for multi-room PA applications
  • Priority input for fire alarm systems
  • Independent paging input can be routed to all zones
  • 4 zone outputs can be controlled individually
Read Full Description
RRP: £549.00 (inc. VAT)
Save: 18%
Your Price: £449.00 (inc. VAT)
Item in Stock  |  Usually dispatched within 24 hours
  • Delivery Information
  • Standard Delivery - (FREE UK Delivery)
  • Express Delivery Available
Add to Bag
This product has been added to your basket...
  • Continue Shopping
  • Checkout

The Monacor PA-12040 480W mixer amplifier is perfect for installing into large entertainment/commercial environments that are wanting a high-quality background music system. The professional amplifier features 4 x 120W zones that have their own designated volume and EQ controls (gain, treble & bass). This is perfect for environments where multiple zones are required.

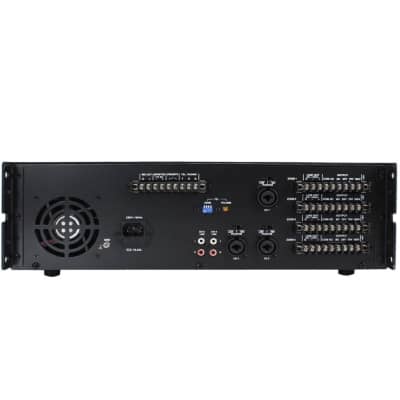

On the rear of the amplifier there is a 'Priority' input for the direct connection of a fire alarm system. This will mean when the fire alarm sounds, the amplifier and speakers will mute, ensuring an emergency evacuation can take place.

The Bass & Treble EQ and Master volume can control the overall output and can be used to power either 8 Ohms or 100V line speakers.

Featuring a variety of inputs such as Mic/Line and RCA Phono the PA-12040 can take a direct connection from smartphones/tablets, CD or DAB radios, as well as a microphone. A headphone output is also situated on the face of the amplifier so you can monitor the audio.

If you require any assistance with any of our amplifiers then call us on 02476 369890 and one of our specialists will be happy to help!



Monacor PA-12040 Key Features

  • 4 x 120WRMS 100V and 4 Ohm/8 Ohm operation
  • Perfect utilisation of the capacity and reliable protection of the connected speakers due to an integrated limiter
  • 3 inputs microphone/line via comb. jacks
  • 2 inputs line stereo via RCA jacks
  • Each input channel with gain control 2-way tone control channel mute switch and routing switch for zones
  • Microphone inputs with +46V phantom power can be switched on additionally as required
  • Priority function for channels 1-3 switchable
  • Independent paging input can be routed to all zones
  • 4 zone outputs can be controlled individually
  • Zone and monitor line outputs for additional amplifiers or recorders
  • Connection for monitor speakers
  • Level control via VU meters for zone and monitor
  • Adjustable headphone output
  • Fan-cooling
  • 230V mains operation



  • Dimensions (WxHxD): 482x133x410mm
  • Weight: 20.5kg
  • External Depth:  410mm
  • External Length / Height:  133mm
  • External Width:  482mm
  • Frequency Response Max:  17kHz
  • Frequency Response Min:  50Hz
  • No. of Inputs:  5
  • No. of Outputs:  4
  • Output Voltage Max:  100V
  • Output Voltage Min:  25V
  • Power Rating RMS:  120W
  • Supply Voltage V AC:  230V
  • Weight:  20.5kg

Dimensions (WxHxD): 482x133x410mm

Weight: 20.5kg

External Depth:  410mm

External Length / Height:  133mm

External Width:  482mm

Frequency Response Max:  17kHz

Frequency Response Min:  50Hz

No. of Inputs:  5

No. of Outputs:  4

Output Voltage Max:  100V

Output Voltage Min:  25V

Power Rating RMS:  120W

Supply Voltage V AC:  230V

Weight:  20.5kg
