LD Systems CURV 500 PS - Portable Array System Power Set

If more power is required, the CURV 500® Power Set can provide a power of 920 watts RMS and a maximum sound pressure of 134 dB. Two subwoofers and eight satellites offer all the advantages of the CURV 500® System and have sufficient power reserves for larger events or applications with high power requirements, especially in the bass range.

The compact, transport-friendly CURV 500® is an easily configurable array system with eight interlocking satellites, which are operated via a SmartLink® adapter. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology, one 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.

The 10" bass-reflex subwoofer houses the Class D power amplifier and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo, and Speakon-compatible sockets offer extensive connectivity options, and the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles. The second subwoofer with its own power amplifier offers identical technical specifications, but does not require any mixer.

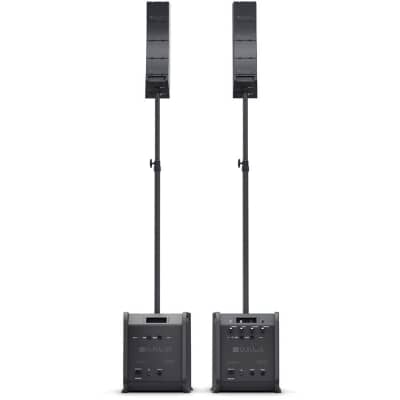

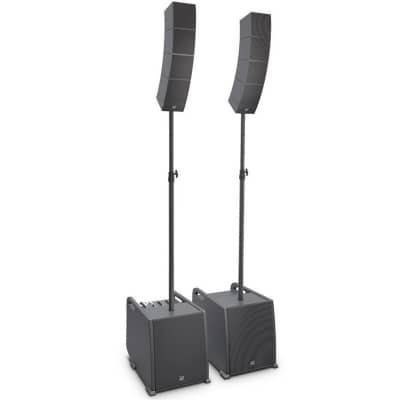

The CURV 500® Power Set includes two subwoofers, one with a mixer unit, eight satellites, two SmartLink® adapters, two extension tubes and matching speaker cables.

Model name: LDCURV500PS

Type: Portable Array System

Rated System Power (RMS): 920 W

Number of Array Satellites: 8

Number of Smartlink® Adapters: 2

Number of Subwoofers: 2

Max. SPL (continuous): 128 dB

Max. SPL (peak): 134 dB

Subwoofer: 10" bass reflex

Satellite: MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms

Frequency response: 47 Hz - 20 kHz

Dispersion (H x V): 110° horizontal, 10° vertical per satellite

Amplifi cation: Class D

Power Output (RMS/Peak): Subwoofer: 300 W / 1200 W, Array Satellites: 2 x 160 W / 2 x 640 W ; Subwoofer Extension: 300 W / 1200 W

Protection: DSP based multiband-limiter, Short Circuit, Overheating, Over-current

Subwoofer Features: 4 channel mixer, Bluetooth®, 16 DFX Presets, 4 System DSP Presets, threaded M20 fl ange, 3 ergonomic handels

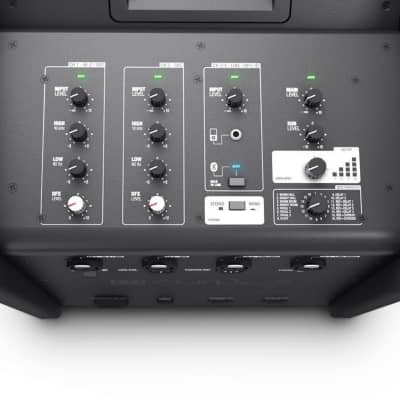

Subwoofer Controls: Input Level (Ch1-4), Hi-Z, Hi/Low EQ (Ch1-2), DFX (Ch1-2), DFX Presets, DSP Presets, Blutetooth Link, Mono/Stereo, Sub Level, Main Level

Subwoofer Indicators: Signal, Limit, Bluetooth®, Power

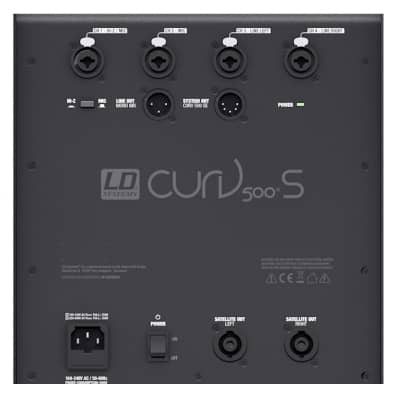

Subwoofer Connectors: 1x Mic/Hi-Z (XLR/6,3mm Jack Combo), 1x Mic (XLR/6,3mm Jack Combo), 2x Line (XLR/6,3mm Jack Combo), 3,5mm Jack, 2 x Array Satellite Out (Speakon compatible), Line Out (XLR), System Out (5-pin XLR)

Subwoofer Material: Plywood

Subwoofer Surface: PA Painting

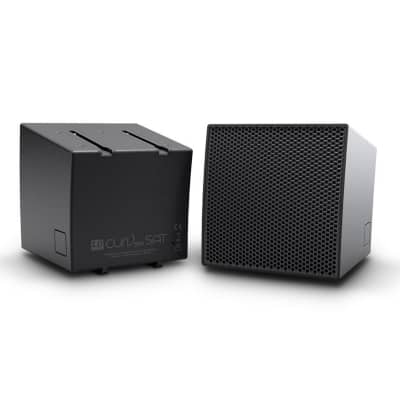

Array Satellite Features: WaveAhead® Technology, internal crossover, metal grille

Array Satellite Material: Diecast Aluminium

Array Satellite Surface: Powder coating

Smartlink® Adapter Features: dual 16 mm fl ange, 2x M6 thread for optional wall mount

Smartlink® Adapter Connectors: 1x Speakon compatible, 1x Phoenix

Smartlink® Adapter Material: Diecast Aluminium

Smartlink® Adapter Surface: Powder coating

Subwoofer Dimensions (W x H x D): 325 x 383 x 491 mm

Array Satellite Dimensions (W x H x D): 122 x 122 x 122 mm

Smartlink® Adapter Dimensions (W x H x D): 122 x 57 x 122 mm

Subwoofer Weight: 16.5 kg

Array Satellite Weight: 1.7 kg

Smartlink® Adapter Weight: 0.6 kg

Accessories (included): 2 x Power cord, 2 x Distance bar, 2 x Speaker cable (2.2 m), 5-pin XLR system cable (10 m)
