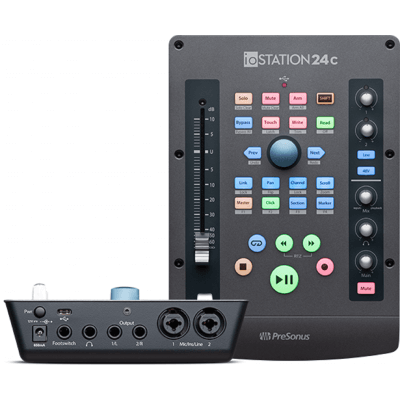

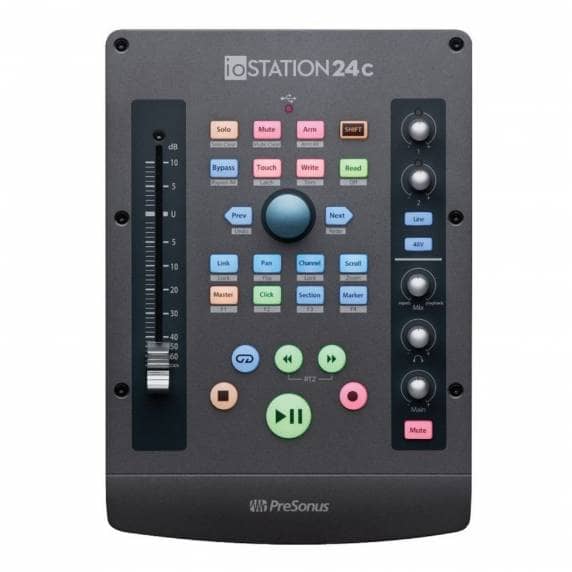

Presonus ioStation 24c

The ioStation 24c is an audio interface and production controller designed and built with solo artists in mind.

It is compact and provides all of the tools you will need for various important roles when taking the role as producer and audio engineer.

Perfect for any home studio, the ioStation 24c allows you to record audio through two pristine XMAX mic preamps and high-definition 24-bit, 192 kHz analogue-to-digital converters and navigate the recordings with an easy-to-use transport control system.

You can also edit your production and automate parameters in your favourite DAW with the powerful Session Navigator and mix it all with a 100 mm touch-sensitive motorized fader.

This is the perfect choice who those who want a compact device for all their recording and mixing needs.

General Features

  • Two products in one: audio interface and production controller
  • Record through two high-quality XMAX mic preamps
  • Control your favourite DAW with a touch-sensitive motorized fader and intuitive navigation controls
  • Compact, ergonomic design fits into any studio, whether in your bedroom or your backpack

Recording Features

  • USB-C™ compatible (USB 2.0), 24-bit/192 kHz audio interface
  • 2 mic/instrument/line inputs with XMAX mic preamps
  • 2 balanced ¼” TRS main outputs
  • Simultaneous I/O up to 2 inputs and 2 outputs
  • Mixer knob for low-latency direct input monitoring
  • 1 ¼” headphone output with independent level control
  • USB 2.0 connectivity, macOS/Windows compatible

Production Features

  • Single touch-sensitive, 100 mm long-throw, motorized fader
  • Large, 360° button encoder
  • Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
  • Drop Marker, Next/Prev Marker, Next/Prev Event
  • General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Click On/Off
  • Session Navigator provides quick control over Track Scrolling, Timeline Scrolling, and much more
  • Channel Controls: Level, Pan, Solo, Mute, Rec Arm
  • Automation Controls: Touch, Latch, Trim, Write, Read, Off
  • Native Studio One support with tightly integrated control
  • Dedicated MCU modes for Logic, Live, and Cubase / Nuendo
  • Customized HUI implementation for Pro Tools
  • Footswitch input for hands-free start/stop (footswitch not included)

Included Software

  • Studio One Artist recording and production software
  • Over 6GB of additional loops and sample content
  • Studio Magic Plug-in Suite

Computer system requirements

Below are the minimum computer-system requirements for the Quantum Interface.

Mac

  • macOS® 10.11 or higher (64-bit only)
  • Intel® i-series 2 GHz multicore processor (or AMD equivalent) or faster
  • 4 GB RAM (8 GB or more recommended)


Windows

  • Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
  • Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
  • 4 GB RAM (8 GB or more recommended)


Mac and Windows Systems

  • USB-C™ or USB-A 2.0 port compatibility
  • 32 GB hard disk space
  • PreSonus Universal Control 2.0 or higher
  • Monitor with 1366x768 resolution (high-dpi monitor recommended)
  • Multitouch-enabled monitor required for touch operation


Note: The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.

Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio signals.

Technical Specifications

Microphone Preamp

  • Type XLR Female (via Combo), Balanced
  • Maximum Input Level +16 dBu (Balanced, min. gain)
  • Gain Control Range 80 dB
  • Frequency Response 20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz)
  • Dynamic Range > 107 dB (A-wtd, min. gain)
  • Total Harmonic Distortion < 0.007% (1 kHz, min. gain)
  • EIN < -128 dBu (max gain, 40Ω, 22 kHz BW, A-wtd)
  • Input Impedance 1.6 kΩ
  • Phantom Power +48V, > 8 mA per input

Instrument Inputs

  • Type ¼” TS Female (via Combo), Unbalanced
  • Maximum Input Level +15 dBu (Unbalanced, min. gain)
  • Gain Control Range 80 dB
  • Frequency Response 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
  • Dynamic Range > 110 dB (A-wtd, min. gain)
  • Total Harmonic Distortion < 0.012% (1kHz, -1 dBFS, min. gain)
  • Input Impedance > 1 MΩ

Line Inputs

  • Type ¼” TRS Female (via Combo), Balanced
  • Maximum Input Level + 22 dBu (Balanced, min. gain)
  • Frequency Response 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
  • Dynamic Range > 114 dB (A-wtd, min. gain)
  • Total Harmonic Distortion < 0.007% (1 kHz, -1 dBFS, min. gain)
  • Input Impedance 10 kΩ

Main and Line Outputs

  • Type ¼” TRS Female, impedance balanced
  • Maximum Output Level +18 dBu (Balanced)
  • Frequency Response 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
  • Dynamic Range > 109 dB (A-wtd)
  • Total Harmonic Distortion < 0.005% (1 kHz, +4 dBu)

Headphone Outputs

  • Type ¼” TRS Female, Stereo, Unbalanced
  • Maximum Output Level 150 mW/channel (56Ω load)
  • Frequency Response 20 Hz to 20 kHz (±0.2 dB, 56Ω load, 48 kHz)
  • Dynamic Range > 107 dB (A-wtd)
  • Total Harmonic Distortion < 0.02% (1 kHz, -1 dBFS, no load)
  • Headphone Impedance (working range) 32Ω to 300Ω

Digital Audio

  • Connection Type USB 2.0 over USB-C™ Compatible Connection
  • ADC Dynamic Range 115 dB (A-wtd)
  • DAC Dynamic Range 115 dB (A-wtd)
  • Bit Depth 24 bits
  • Internally Supported Sample Rates 44.1, 48, 88.2, 96, 176.4, 192 kHz

Clock

  • Jitter < 70 ps RMS (20 Hz – 20 kHz)
  • Jitter Attenuation > 60 dB (1 ns in => 1 ps out)

Power

  • 12 VDC, 1.2A, external power supply

Physical

  • Height 2.4" (61 mm)
  • Depth 6.8" (172 mm)
  • Width 9.6" (244 mm)
  • Weight 2.2 lbs (1 kg)
