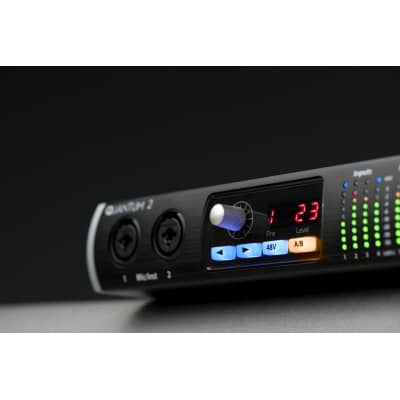

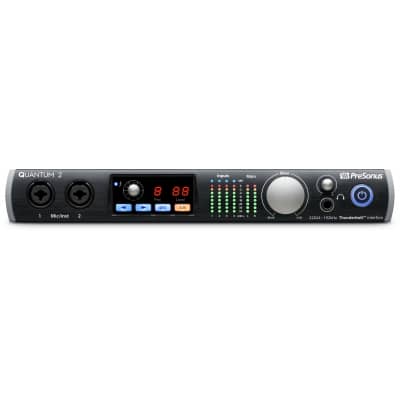

PreSonus Quantum 2 – Thunderbolt 2 Desktop Audio/MIDI Interface

PreSonus Quantum 2 – Thunderbolt 2 Desktop Audio/MIDI Interface

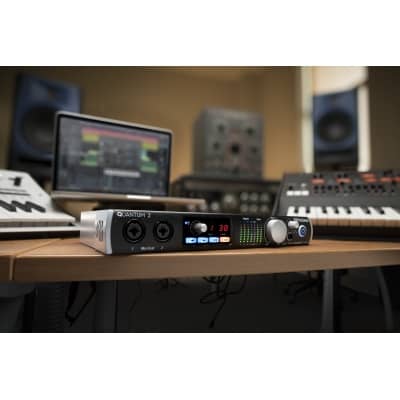

The Quantum 2 takes all that we loved about the original Quantum, super-charges it with new features and functions and then condenses the whole lot into a much smaller, desktop-friendly chassis! Offering crystal-clear 24-bit/192kHz audio resolution, extremely low latency and blisteringly fast Thunderbolt 2 connectivity, the Quantum 2 also features ADAT Optical I/O, allowing expansion for up to 22 low-latency inputs and 24 outputs in one compact device!

As well as being the fastest PreSonus interface to date – thanks to Thunderbolt 2 – the Quantum 2 is also arguably the best-sounding, offering ADCs and DACs with >120 dB dynamic range and up to 24-bit/192kHz recording. It is equipped with a direct-to-DAW signal path, which gives you extremely low-latency performance with no DSP added.

It is fully expandable via ADAT Optical I/O to provide up to 22 inputs and 24 outputs, but that’s not all – up to 4 Quantum 2 interfaces can be stacked via Thunderbolt for an incredible 80 inputs and 80 outputs – perfect for even the largest of professional studios!

It features integrated software control, which allows for line-level switching, output encoder control assignment, headphone routing and recallable XMAX mic preamps which provide exceptional audio recording quality. In a brilliantly unique twist, the interface features DC coupled analog outputs which can provide control voltage to external analog equipment, controlled by a DAW plug-in; plus peripherals, such as hard drives and displays, can be stacked via Thunderbolt. This is an interface that gets connectivity and functionality completely right!

PreSonus also provide a full copy of their Studio One Artist DAW – which can be used to remotely control the preamps along with a number of other remote features – as well as their Studio Magic Plug-in Suite, both free of charge. Even better still, Quantum 2 owners can upgrade to Studio One Professional with an incredible 50% discount off the usual price.

Key Features:

• PreSonus^®’ fastest and best-sounding audio/MIDI interface

• Uses high-speed Thunderbolt™ 2 bus

• 24-bit resolution and up to 192 kHz sampling rate (120 dB dynamic range)

• 22x24; expandable to 80x80 by stacking up to four Quantums via Thunderbolt

• 2 combo mic/instrument inputs with recallable XMAX preamps

• 2 combo mic/line inputs with recallable XMAX preamps

• +48V phantom power (switchable per channel)

• 6 8-segment LED meters (8 input, 2 output)

• 4 ¼” TRS line outputs, DC coupled

• 1 ¼” headphone output with dedicated volume

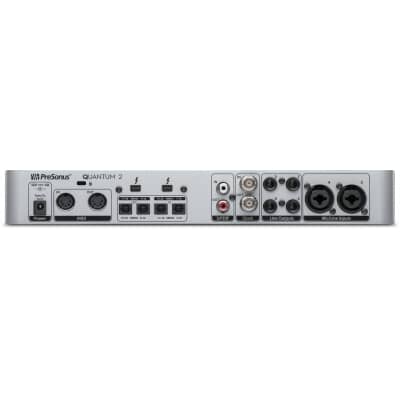

• Dual ADAT Optical I/O

• S/PDIF, MIDI, and BNC word clock I/O

• Assignable output level control

  Studio One^® Artist and Studio Magic Plug-in Suite included; upgrade to Studio One Professional for 50% off

Detailed Specifications:

Computer system requirements:

Below are the minimum computer-system requirements for the Quantum 2 Interface.

Mac

Mac® OS X 10.11.6 64-bit or later

Intel® Core™ i5 or better

4 GB RAM (8 GB or more recommended)

Windows

Windows® 10 64-bit or later

Intel Core i5 or better

4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

Thunderbolt™ 1.0 or 2.0 port (Note: Your computer's motherboard must support Thunderbolt)

Internet connection (required for Studio One Activation and Content download)

Internal or external 7200 RPM storage drive highly recommended

30 GB hard disk space

Monitor with 1366x768 resolution

Note: The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.

Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio signals.

Technical Specifications

Microphone Preamp

Type XLR Female (via Combo), Balanced

Maximum Input Level +10 dBu (Balanced, min. gain)

Gain Control Range 60 dB

Frequency Response 20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz)

20 Hz to 40 kHz (±0.22 dB, unity gain, 96 kHz)

Dynamic Range > 110 dB (A-wtd, min. gain)

Total Harmonic Distortion < 0.005% (1 kHz, min. gain)

EIN < -131 dBu (max gain, 40?, 22 kHz BW, A-wtd)

Input Impedance 1.6 k?

Phantom Power +48V, > 8 mA per input

Instrument Inputs

Type ¼” TS Female (via Combo), Unbalanced

Maximum Input Level +15 dBu (Unbalanced, min. gain)

Gain Control Range 60 dB

Frequency Response 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)

20 Hz to 40 kHz (±0.6 dB, unity gain, 96 kHz)

Dynamic Range > 106 dB (A-wtd, min. gain)

Total Harmonic Distortion < 0.005% (1kHz, min. gain)

Input Impedance > 1 M?

Line Inputs

Type ¼” TRS Female (via Combo), Balanced

Maximum Input Level + 18 dBu (Balanced, min. gain)

Frequency Response 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)

20 Hz to 40 kHz (±0.10 dB, unity gain, 96 kHz)

Dynamic Range > 118 dB (A-wtd, min. gain)

Total Harmonic Distortion < 0.005% (1 kHz, min. gain)

Input Impedance 10 k?

Main and Line Outputs

Type ¼” TRS Female, impedance balanced

Maximum Output Level +18 dBu (Balanced)

Frequency Response 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)

20 Hz to 40 kHz (±0.15 dB, unity gain, 96 kHz)

Dynamic Range > 118 dB (A-wtd)

Total Harmonic Distortion < 0.0035% (1 kHz, +4 dBu)

Output Impedance 51?

Headphone Outputs

Type ¼” TRS Female, Stereo, Unbalanced, x2

Maximum Output Level 175 mW/channel (56? load)

Frequency Response 20 Hz to 20 kHz (±0.5 dB, 48 kHz)

Dynamic Range > 110 dB (A-wtd)

Total Harmonic Distortion < 0.03% (1 kHz)

Headphone Impedance (working range) 16? to 300?

Crosstalk

Input to Input < -110 dB

Output to Output < -115 dB

Input to Output < -120 dB

Signal Level LEDs

Clip -0.5 dBFS

Signal 1 -2 dBFS

Signal 2 -4 dBFS

Signal 3 -6 dBFS

Signal 4 -10 dBFS

Signal 5 -20 dBFS

Digital Audio

Connection Type Thunderbolt 2

ADC Dynamic Range 120 dB (A-wtd)

DAC Dynamic Range 120 dB (A-wtd)

Bit Depth 24 bits

Internally Supported Sample Rates 44.1, 48, 88.2, 96, 176.4, 192 kHz

Clock

Jitter < 70 ps RMS (20 Hz – 20 kHz)

Jitter Attenuation > 60 dB (1 ns in => 1 ps out)

Power

12 VDC, 5A, external power supply

Physical

Dimensions

Height 1.75" (44 mm)

Depth 7" (178 mm)

Width 12.5" (317 mm)

Weight 5 lbs (2.27 kg)
