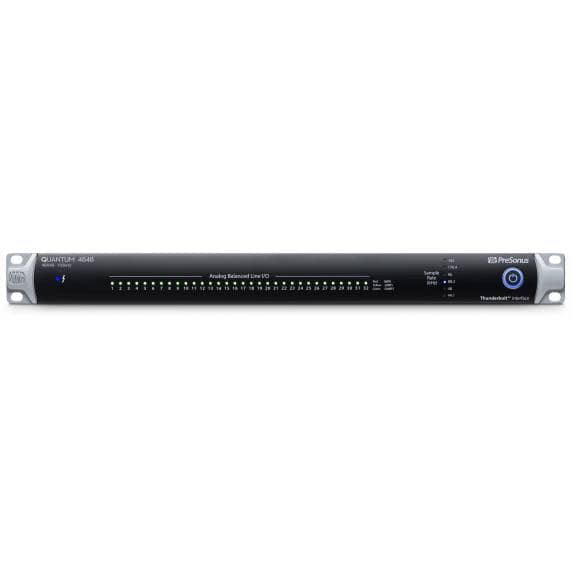

PreSonus Quantum 4848 Thunderbolt 2 Audio Interface
  • PreSonus Quantum 4848 Thunderbolt 2 Audio Interface
  • PreSonus Quantum 4848 Thunderbolt 2 Audio Interface
Presonus

PreSonus Quantum 4848 Thunderbolt 2 Audio Interface

Code: QUANTUM4848
0 Stars 0 reviews

Read Reviews

  • 48x48 ultra-low-latency 24-bit 192 kHz Thunderbolt™ 2 audio interface
  • Stack up to four Quantum 4848 interfaces via Thunderbolt for 192x192 simultaneous inputs and outputs
  • Stack any combination of four Quantum, Quantum 2, and Quantum 4848 interfaces via Thunderbolt to create a custom system
  • Includes Studio One Professional
  • 1U Rack Mountable
Read Full Description
RRP: £1,500.00 (inc. VAT)
Save: 12%
Your Price: £1,319.99 (inc. VAT)
Item out of Stock  |  Usually dispatched within 24 hours
  • Delivery Information
  • Standard Delivery - (FREE UK Delivery)
  • Express Delivery Available
Add to Bag
This product has been added to your basket...
  • Continue Shopping
  • Checkout

PreSonus Quantum 4848 Thunderbolt 2 Audio Interface

The latest generation of Thunderbolt interfaces has arrived.

The latest installment of the Quantum Series of interfaces continues with the introduction of the Quantum 4848. With 32 Inputs and outputs with DB25 line level connection to deliver pristine audio conversion.

With its near zero latency, the Quantum 4848 can incorporate analog gear into your DAW!

Integrating digital gear is facilitated by 16 channels of ADAT I/O. For a full compliment of 48 channels of conversion, you can simply add two DigiMax DP88s via the 16 ADAT channels. A true Thunderbolt device, up to 4 Quantum 4848 interfaces can be stacked to create a 192x192 system—or combine the Quantum 4848 with Quantum and Quantum 2 interfaces to add PreSonus’ recallable XMAX Class A high-headroom preamps.

Studio One’s latency management allows you to stay in the native processing domain throughout the entire production process, so you can easily mix and match your favorite plug-ins with your favorite boutique hardware processors. Furthermore, Studio One allows the Quantum 4848 to go as fast as you need—flexible dropout protection reduces the risk of audio dropouts in large, CPU-heavy songs, even at very small buffer settings.

Quantum sports high-speed Thunderbolt connectivity and a no-frills, direct-to-DAW architecture that was designed to transport your audio to and from your DAW with an imperceptible amount of latency. Cutting-edge 24-bit, 192 kHz converters with 120 dB of dynamic range ensures the fidelity of your audio as it moves to the digital domain.

The Quantum audio interface operates at up to 192 kHz for ultra-high-definition mixing and recording. High-quality converters on every input and output provide 120 dB of dynamic range to capture complex musical harmonics smoothly and naturally with no audible distortion. BNC word clock I/O and low-jitter clocking ensure the Quantum 4848 and other digital audio devices operate in tight sync for superior imaging.

Designed with the modern analog studio in mind, the Quantum 4848 provides flexible connectivity to easily integrate into analog patchbays, vintage consoles, and more. And with Studio One’s unique Pipeline XT plug-in and performance management tools, bringing your analog studio into the digital domain has never been easier or sounded better.

Features:

  • 48x48 ultra-low-latency 24-bit 192 kHz Thunderbolt™ 2 audio interface
  • 32 line-level inputs and outputs via rear-panel DB25 connectors
  • Dual ADAT inputs and outputs for 16 channels of digital I/O at base sample rates.
  • Stack up to four Quantum 4848 interfaces via Thunderbolt for 192x192 simultaneous inputs and outputs
  • Stack any combination of four Quantum, Quantum 2, and Quantum 4848 interfaces via Thunderbolt to create a custom system
  • Tight integration with included Studio One® Professional DAW software (Mac®/Windows®) for multitrack music production and mastering
  • Native Studio One Pipeline XT plug-in provides easy integration of analog processors in a digital recording environment
  • Select the Channel Profile modes, monitor levels, switch the front panel level meters (input/output), and more with free UC Surface touch-control software (Mac/Windows/iPad®/Android™*)
  • Wireless control of Studio One Professional using free Studio One Remote for iPad/Android tablet
  • Studio Magic Plug-in Suite included
  • Compatible with most recording software for Mac and Windows
  • Rugged construction with all-metal chassis
  • 1U rack-mountable
  • 12 VDC, 5A external power supply (included)
  • Thunderbolt 2 high-speed bus
  • 24-bit resolution and up to 192 kHz sampling rate
  • 120 dB A/D/A converters
  • BNC word clock input and output with low-jitter clocking
  • Simultaneous I/O up to 48 inputs/48 outputs
  • 32 line-level inputs and outputs via rear-panel DB25 connectors
  • ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz
  • Channel Profile modes allow you to customize I/O configurations for third-party recording software that limits simultaneous recording streams
  • Dual Thunderbolt ports for stacking multiple units and connecting Thunderbolt peripherals
  • Mac® OS X 10.11.6 64-bit or later
  • Intel® Core™ i5 or better
  • 4 GB RAM (8 GB or more recommended)
  • Windows® 10 64-bit or later
  • Intel Core i5 or better
  • 4 GB RAM (8 GB or more recommended)
  • Thunderbolt™ 1.0, 2.0, or 3.0 port (Note: Your computer's motherboard must support Thunderbolt. Thunderbolt 3 requires an adapter, not included.)
  • Internet connection (required for Studio One Activation and Content download)
  • Internal or external 7200 RPM storage drive highly recommended
  • 30 GB hard disk space
  • Monitor with 1366x768 resolution
  • Line Inputs
  • Type DB25 (Tascam Format), Balanced
  • Maximum Input Level +18 dBu (Balanced, min. gain)
  • Frequency Response 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
  • 20 Hz to 40 kHz (±0.10 dB, unity gain, 96 kHz)
  • Dynamic Range > 118 dB (A-wtd, min. gain)
  • Total Harmonic Distortion < 0.005% (1 kHz, min. gain)
  • Input Impedance 10 k?
  • Line Outputs
  • Type DB25 (Tascam Format), impedance balanced, DC Coupled
  • Maximum Output Level +18 dBu (Balanced)
  • Frequency Response 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
  • 20 Hz to 40 kHz (±0.15 dB, unity gain, 96 kHz)
  • Dynamic Range > 118 dB (A-wtd)
  • Total Harmonic Distortion < 0.0035% (1 kHz, +4 dBu)
  • Output Impedance 51?
  • Crosstalk
  • Input to Input < -110 dB
  • Output to Output < -115 dB
  • Input to Output < -120 dB
  • Signal Level LEDs
  • Clip -0.5 dBFS (Red)
  • Signal 2 -2 dBFS (Yellow)
  • Signal 1 -50 dBFS (Green)
  • Digital Audio
  • Connection Type Thunderbolt*
  • ADC Dynamic Range 120 dB (A-wtd)
  • DAC Dynamic Range 120 dB (A-wtd)
  • Bit Depth 24 bits
  • Internally Supported Sample Rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • Clock
  • Jitter < 70 ps RMS (20 Hz – 20 kHz)
  • Jitter Attenuation > 60 dB (1 ns in => 1 ps out)
  • Power
  • 12 VDC, 5A, external power supply
  • Physical
  • Dimensions
  • Height 1.75" (44.45 mm)
  • Depth 7" (177.8 mm)
  • Width 19" (482.6 mm)
  • Weight 6 lbs (2.72 kg)
