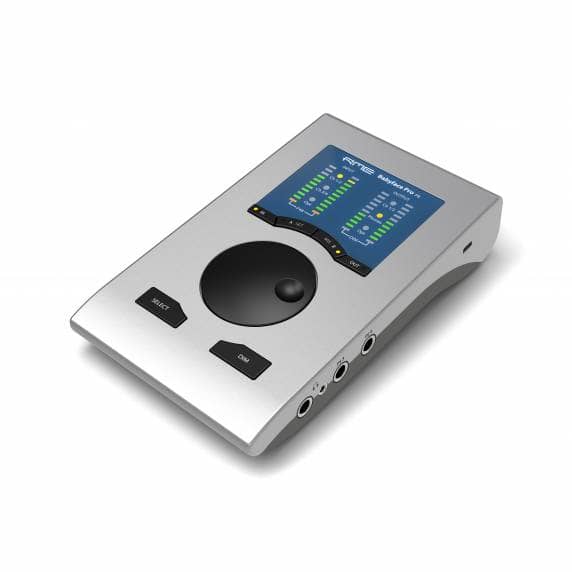

RME Babyface Pro FS - 24-Channel USB Audio Interface

AD — Microphone/Line Inputs 1–2

• Input: XLR, electronically balanced
• Input impedance (balanced): 2 kΩ / 5.2 kΩ with PAD
• Input impedance (unbalanced): 1 kΩ / 2.6 kΩ with PAD
• SNR: 113.7 dB RMS unweighted, 117 dBA
• THD: < -112 dB / < 0.00024%
• THD+N: < -108 dB / < 0.00035%
• Channel separation: > 110 dB
• Gain range: -11 dB to +65 dB
• Max input level (Gain 0 dB): +8 dBu / +19 dBu with PAD
• Frequency response @ 44.1 kHz: 18 Hz – 20.8 kHz (-0.1 dB)
• Frequency response @ 96 kHz: 7 Hz – 45.8 kHz (-0.5 dB)
• Frequency response @ 192 kHz: 5 Hz – 88 kHz (-1 dB)

AD — Line/Instrument Inputs 3–4

• Input: 6.3 mm TS jack, unbalanced
• Input impedance: 1 MΩ
• SNR: 116 dB RMS unweighted, 120 dBA
• Max input level (+4 dBu, Gain 0 dB): +13 dBu
• Max input level (-10 dBV, Gain 9 dB): -5 dBu
• Frequency response @ 44.1 kHz: 5 Hz – 20.8 kHz (-0.1 dB)
• Frequency response @ 96 kHz: < 3 Hz – 45.8 kHz (-0.5 dB)
• Frequency response @ 192 kHz: < 2 Hz – 92 kHz (-1 dB)

DA — Line Outputs 1–2

• Output: XLR balanced
• Dynamic range: 115 dB RMS unweighted, 118 dBA
• THD: -106 dB / 0.0005%
• THD+N: -102 dB / 0.0008%
• Channel separation: > 110 dB
• Output impedance: 300 Ω balanced / 150 Ω unbalanced
• Output level @ 0 dBFS: +19 / +4 dBu (balanced)
• Frequency response @ 44.1 kHz: 0 Hz – 20.8 kHz (-0.5 dB)
• Frequency response @ 96 kHz: 0 Hz – 45 kHz (-0.5 dB)
• Frequency response @ 192 kHz: 0 Hz – 89 kHz (-1 dB)

DA — Headphone Output 3 (6.3 mm TRS)

• Output impedance: 10 Ω
• Output level @ 0 dBFS (1 kΩ load): +13 dBu
• Max power @ 0.1% THD: 60 mW
• SNR: 114.8 dB RMS unweighted, 118 dBA
• Noise level: -101.8 dBu

DA — Headphone Output 4 (3.5 mm TRS)

• Output impedance: 0.1 Ω
• Output level @ 0 dBFS (1 kΩ load): +7 dBu
• Max power @ 0.1% THD: 90 mW
• SNR: 114 dB RMS unweighted, 117 dBA
• Noise level: -107 dBu

MIDI

• 1 x MIDI I/O via breakout cable (2 x 5-pin DIN)
• Galvanically isolated via optocoupled input
• Hi-speed mode: jitter and response time typically below 1 ms
• Separate 128 byte FIFOs for input and output

Digital — Clocking

• Clock sources: Internal, ADAT In, SPDIF In
• Jitter suppression of external clocks: > 50 dB (2.4 kHz)
• Effective clock jitter influence on AD/DA conversion: near zero
• PLL ensures zero dropout at up to 100 ns jitter
• Supported sample rates: 28 kHz – 200 kHz

Digital Inputs — ADAT Optical

• 1 x TOSLINK
• Standard: 8 channels, 24-bit, up to 48 kHz
• Double Speed (S/MUX): 4 channels, 24-bit, 96 kHz
• Quad Speed (S/MUX4): 2 channels, 24-bit, 192 kHz
• Jitter suppression: > 50 dB (2.4 kHz)
• Lock range: 31.5 kHz – 50 kHz

Digital Inputs — SPDIF Optical

• 1 x optical (IEC 60958)
• Accepts Consumer and Professional format
• Lock range: 27 kHz – 200 kHz
• Jitter suppression: > 50 dB (2.4 kHz)

Digital Outputs — ADAT Optical

• 1 x TOSLINK
• Standard: 8 channels, 24-bit, up to 48 kHz
• Double Speed (S/MUX): 4 channels, 24-bit, 96 kHz
• Quad Speed (S/MUX4): 2 channels, 24-bit, 192 kHz

Digital Outputs — SPDIF Optical

• 1 x optical (IEC 60958)
• Sample rate: 28 kHz – 200 kHz

General

• Power supply: USB bus power or external PSU
• Idle power consumption: 2.8 W
• Typical power consumption: 3.7 W
• Max power consumption: 5.4 W
• Dimensions (W x H x D): 108 x 35 x 181 mm (4.25" x 1.4" x 7.1")
• Weight: 680 g (1.5 lbs)
• Operating temperature: +5°C to +50°C (41°F to 122°F)
• Relative humidity: < 75%, non-condensing
