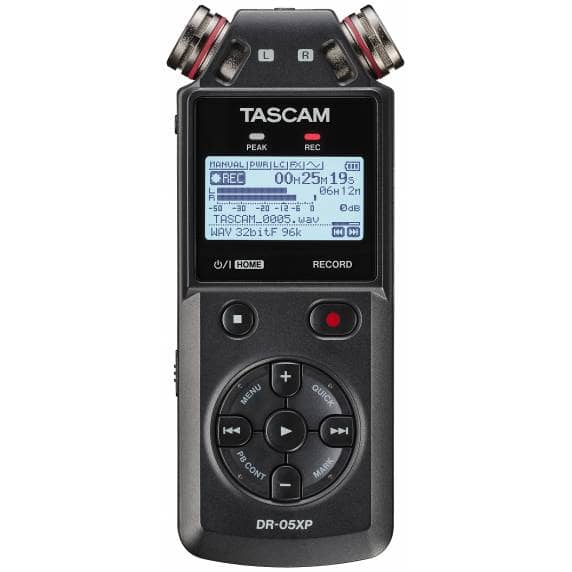

Tascam DR-05XP Stereo Handheld Audio Recorder & USB Audio Interface

The Tascam DR-05XP is a versatile and portable handheld audio recorder designed to capture high-quality sound effortlessly. Ideal for musicians, videographers, podcasters, journalists, and field recordists, this device delivers 32-bit float recording for pristine, distortion-free audio without the need for manual level adjustments. With built-in omnidirectional condenser microphones, a USB-C audio interface, and extensive recording/playback features, the DR-05XP is an essential tool for professional and amateur users alike.

Key Features

• 32-Bit Float Recording – Eliminates the need for manual level adjustments while preserving clarity and detail.

• Stereo Omnidirectional Condenser Microphones – Capture immersive audio with high sensitivity and minimal distortion, even in loud environments (up to 125 dB SPL).

• Portable and User-Friendly Design – Compact, lightweight, and easily operable with one hand.

• USB-C Audio Interface (2-in/2-out) – Enables direct recording to a Mac or PC.

• DSLR and Mobile Compatibility – Includes Auto Tone output for seamless video production integration.

• Large Recording Capacity – Supports microSDXC cards up to 512 GB for extended recording sessions.

• Long Battery Life – Provides up to 17.5 hours of continuous operation with two AA alkaline batteries.

• Multiple Recording Options – Features manual and automatic level controls, pre-recording, overdubbing, and auto-recording.

• Sound-Sensitive Auto Recording – Starts recording when it detects sound.

• Versatile Playback Functions – Includes variable speed playback, looping, and equalization.

• Built-In Reverb & Chromatic Tuner – Enhances recording and playback quality.

• Tripod and Mic Stand Mountable – 1/4-inch stand adapter for stable positioning.



Professional-Grade Recording Capabilities

The Tascam DR-05XP ensures studio-quality audio with a frequency response from 20 Hz to 40 kHz and minimal distortion (≤0.01% THD+N). It supports multiple formats:

• WAV/BWF: 32-bit float, 24-bit, and 16-bit at 96 kHz, 48 kHz, and 44.1 kHz.

• MP3: 32–320 kbps at 44.1/48 kHz.



Versatile Use Cases

• Music Recording – Capture rehearsals, performances, or songwriting ideas with clarity.

• Field Recording & Foley – Perfect for nature soundscapes, interviews, and environmental audio.

• Podcasting & Voiceovers – Plug-and-play with USB-C for a seamless digital recording experience.

• Video Production – Auto Tone output enhances DSLR audio recording, while the external mic input allows for expansion.

• Meetings & Lectures – Auto-recording ensures you never miss a word.



Connectivity & Power Options

• Stereo Mini-Jack Mic/Line Input – Supports external microphones with plug-in power.

• USB-C Port – Enables file transfers and real-time recording to computers.

• Power Sources:

  • 2 x AA Batteries (alkaline or NiMH)

  • USB Bus Power (from a computer)

  • Optional AC Adapter (Tascam PS-P520U, 5V, 2A)



Accessories & Expansion

• Windscreen (WS-11) – Reduces wind noise for outdoor recordings.

• Accessory Pack (AK-DR11) – Includes a power adapter, cables, and stand adapter.

• Lavalier Microphone (TM-10L) – Ideal for interviews and presentations.

• Battery Pack (BP-6AA) – Provides extended power for long recording sessions.

Specifications

Recording Format

• WAV (BWF compatible): 32-bit float / 24-bit / 16-bit
• MP3: 32–320 kbps

Sampling Frequencies

• WAV: 44.1 kHz / 48 kHz / 96 kHz
• MP3: 44.1 kHz / 48 kHz

Microphones

• Type: Omnidirectional condenser microphones
• Max SPL: 125 dB SPL

Inputs & Outputs

• Line/Mic Input: 3.5mm stereo mini-jack with plug-in power (2.4V)
• Headphone/Line Output: 3.5mm stereo mini-jack
• USB-C Port: Audio interface (2-in/2-out), file transfer, power

Audio Performance

• Frequency Response: 20 Hz – 40 kHz
• THD+N: ≤ 0.01%
• S/N Ratio: ≥ 92 dB

Storage

• Supports: microSD / microSDHC / microSDXC (up to 512GB)

Power Supply

• Battery: 2 × AA batteries (alkaline, NiMH)
• USB Bus Power: Yes
• Optional AC Adapter: Tascam PS-P520U (5V, 2A)

Battery Life

• 17.5 hours (with alkaline batteries, 44.1 kHz / 16-bit WAV recording)

Dimensions & Weight

• Size: 61mm × 141mm × 26mm (W × H × D)
• Weight: 165g (including batteries)

Additional Features

• Auto Tone for DSLR video syncing
• Sound-sensitive auto recording
• Overdub recording
• Built-in reverb & chromatic tuner
• Variable speed playback
• Tripod/mic stand mountable
