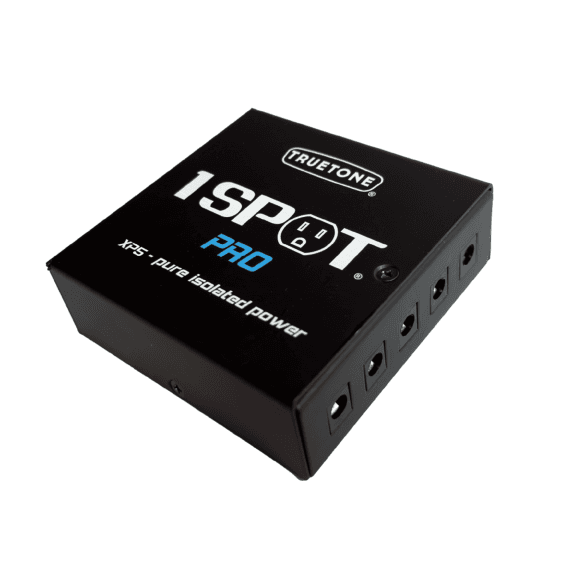

Truetone 1 Spot Pro XP5 Output Expansion Box

The Truetone 1 Spot Pro XP5 is the ultimate compact solution for expanding your pedalboard’s power capabilities.

Designed to integrate seamlessly with the CS11, this tiny powerhouse adds 5 isolated outputs, each delivering studio-grade 9V DC power with a current capacity of up to 500mA. Whether you’re powering high-draw digital pedals or standard analogue effects, the XP5 offers clean and reliable power for even the most demanding setups.

With its compact size and lightweight design, the XP5 is highly versatile. Measuring just 88 x 88 x 30mm and weighing only 333 grams, it fits easily under most pedalboards or can be mounted on top as a pedal riser. Its Velcro-compatible base ensures hassle-free attachment. Additionally, two linked input jacks allow you to daisy-chain additional Truetone expansion boxes, such as the XP5 or XP8, making it easy to scale up your setup as needed.

Key Features:

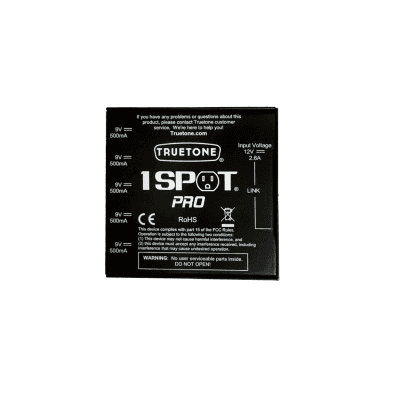

• 5 fully isolated 9V DC outputs, each providing up to 500mA of current.
• Compact and lightweight design (88 x 88 x 30mm, 333g) for easy pedalboard integration.
• Low profile allows mounting under most pedalboards or use as a pedal riser.
• Studio-clean power ensures noise-free performance for all your pedals.

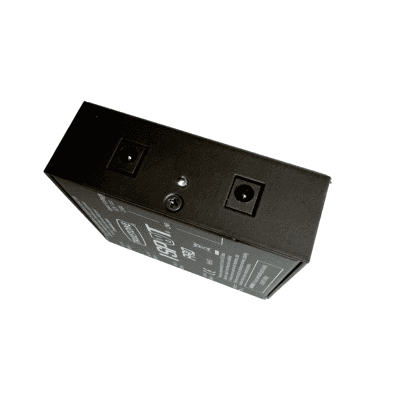

• Expandable system with two linked input jacks for powering additional XP5 or XP8 units.
• Includes DC cables for connecting your pedals.
• Durable construction built to withstand heavy gigging and studio use.

Dimensions: 88 x 88 x 30mm

Weight: 0.336kg
