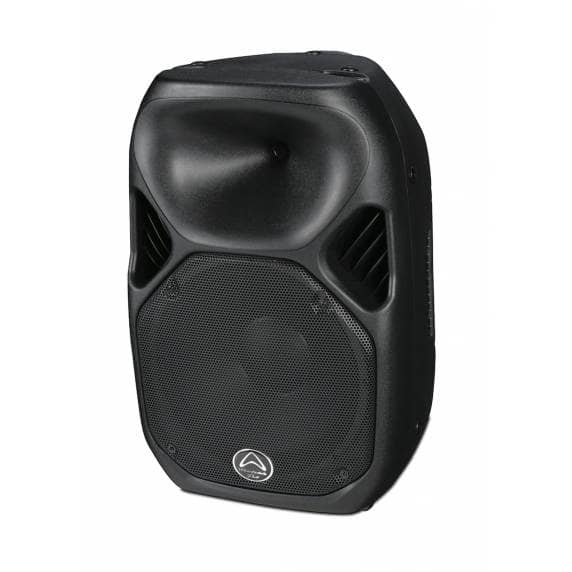

Wharfedale Titan AX12 2-Way Active Speaker, 12"/300W (Black)
  • Wharfedale Titan AX12 2-Way Active Speaker, 12"/300W (Black)
  • Wharfedale Titan AX12 2-Way Active Speaker, 12"/300W (Black)
  • Wharfedale Titan AX12 2-Way Active Speaker, 12"/300W (Black)
Wharfedale Pro

Wharfedale Titan AX12 2-Way Active Speaker, 12"/300W (Black)

0 Stars 0 reviews

Read Reviews

  • Class-D bi-amplified design providing 300W RMS/600W Peak
  • Can be used as main PA, in arrays, or as a monitor
  • Built-in mixer control and multiple DSP settings
  • 10 x M8 rigging points and integral tripod stand adapter
 Read Full Description
RRP: £299.00 (inc. VAT)
Save: 10%
Your Price: £269.00 (inc. VAT)
Item in Stock  |  Usually dispatched within 24 hours
  • Delivery Information
  • Standard Delivery - (FREE UK Delivery)
  • Express Delivery Available
Add to Bag
This product has been added to your basket...
  • Continue Shopping
  • Checkout

The Wharfedale Titan AX12 is a portable, lightweight and durable active loudspeaker perfect for use as a main PA speaker, in arrays, or as a monitor.

The 12" powered PA speaker features a Class-D bi-amplified design that delivers 300W RMS / 600W Peak Power and with 128dB Max SPL, is an ideal solution for small to medium-sized venues.

The AX12 features a cutting-edge 6-position DSP engine and all-new HF and LF drivers that provide versatile control that cannot be seen on alternative loudspeakers



The new DSP engine provides sophisticated internal loudspeaker management functions. These include limiting, compression, signal delay, dynamic boost, dynamic cut, crossover control and parametric EQ. Micro adjustments within each parameter ensure sonic clarity over the full frequency range.
We’ve optimised these DSP parameters to create 6 user-friendly settings including Monitor, Speech, Bass, Punch and an exclusive mode called “Live”. This Live mode applies different DSP settings to each of the 2 inputs - perfect for solo entertainers using a mic and a line-level source.
Convenient Mixer Control

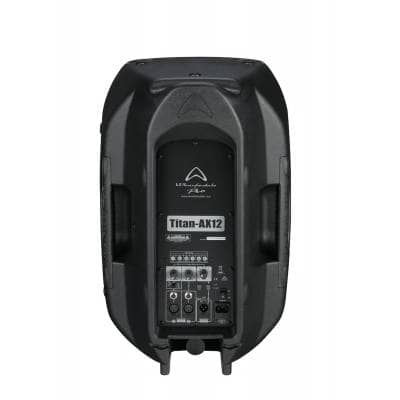

For convenience, TITAN AX12 features a versatile two-channel mixer on the rear panel. The first channel of this mixer allows users to toggle between microphone and line-level inputs.  A balanced XLR output provides an option to send the mix back to additional mixers, monitors or speakers.


Key Features

  • 300 watts programme / 600 watts peak
  • New HF Drivers have been honed acoustically for high-frequency detail and power
  • New  2.5" voice coil LF Drivers reject moisture for resistance in all environments
  • New Proprietary 100° x 80° Hybrid Symmetry Horn design
  • New category leading DSP functions
  • 128dB Max SPL
  • Available in black or white
  • New tweaked laminar rib structure
  • Integral mixer functions
  • Class D Bi-amplified
  • Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles
  • 10 x M8 rigging points and integral tripod stand adapter
  • Rugged protective grille and top-stacking receptacles
  • Trapezoid design for arrays as well as stage monitor applications
  • Titan Tourbags available

System Type: Active 12'' 2-way, bi-amplified

Frequency Range: 50Hz - 20kHz (-10dB)

Frequency Response: 55Hz - 20kHz (+/-3dB)

Calculated Maximum SPL: 128dB at 1m

LF Transducer:

  • Size: 12'' / 305mm
  • Coil Size: 2.5'' / 64.26mm

HF Transducer:

  • Type: Compression driver
  • Coil Size: 1.75'' / 44mm
  • Exit Size: 1'' / 25mm
  • Diaphragm Material: Titanium
  • Nominal Coverage: Hybrid Symmetry Horn, 100° x 80° (H x V)


  • LF Wattage: 250W(RMS)/500W(Peak), Class-D
  • HF Wattage: 50W(RMS)/100W(Peak), Class-D

DSP: Advanced user-selectable presets

  • Flat
  • Monitor
  • Speech
  • Bass
  • Punch
  • Live

Hi-Pass Switch: 90Hz

Amplifier Protection: Yes

Thermal Protection: Yes

Low-Line Voltage Shut Down: 60-percent nominal line voltage

Driver Protection: Independent LF and HF limiters

DC Protection: Yes

Short Protection: Yes

Clip Limiter: Turns on at approximately 250W output

Limiter Indicator: Red LED

Power Indicator: Green LED

Input Type: Switchable balanced mic or line level (Chan 1)

Input Connectors:

  • 2 x XLR
  • 2 x 1/4'' jack

Line Output Connector: Switchable LOOP/MIX balanced female XLR


  • Material: Injection-moulded polypropylene
  • Colour: Black
  • Grille: 1.2mm steel


  • 10 x M8 threaded inserts, including 4 x M8 threaded inserts on bottom in OmniMount 30.0-type footprint
  • 35mm pole receptacle with lock screw
  • 2 x carry-handles (one on each side)

Power Supply: SMPS

AC Power: AC100-120V/220-240V, 50/60Hz

Dimensions: 582.7mm x 384.6mm x 318.6mm / 22.9'' x 15.1'' x 12.5'' (H x W x D)

Weight: 12.4kg / 27.28lbs
