Introducing the Studio 18|10 and Studio 18|24 from Presonus. Featuring the same XMAX preamps as the Studio 2|6 and Studio 6|8 interfaces but with extended channel count. Both have a total of 18 simultaneous outputs at up to 24-bit/192 kHz and share the same XMAX preamp technology seen in previous studio series interfaces.
A versatile recording and performance solution, the Studio 18|10 features cue mix headphone monitoring, onboard monitor mixing, sweet-sounding preamps, abundant line inputs, and up to 192 kHz sample rate. The Studio 1810 will give you the ultra-high-def sound and versatile connectivity you need to make state-of-the-art recordings and perform live. An excellent companion for any recording software, the Studio 1810’s integration with Studio One Artist and remote control with UC Surface provide a complete and thoroughly professional recording solution. Check out the Studio 1810 at your favourite PreSonus dealer.
Input/Output
- Simultaneous I/O up to 18 inputs/8 outputs (8×6 at 192 kHz)
- 2 mic/instrument/line inputs with XMAX Class A mic preamps
- 2 mic/line inputs with XMAX Class A mic preamps
- 4 balanced ¼” TRS direct-to-ADC line inputs
- 8 channels of ADAT Optical input (4 channels at 96 kHz)
- 2 balanced ¼” TRS main outputs
- DC coupled for sending control voltages
- 4 balanced ¼” TRS line outputs for monitor mixing
- DC coupled for sending control voltages
- 2 stereo headphone outputs with the same mix or independent mixes
- MIDI In/Out
- Stereo S/PDIF digital I/O
- 1 USB 2.0 port
Integrated Software
- Studio One® Artist for Mac® and Windows®
- UC Surface control software for Mac, Windows, iPad®, and Android™

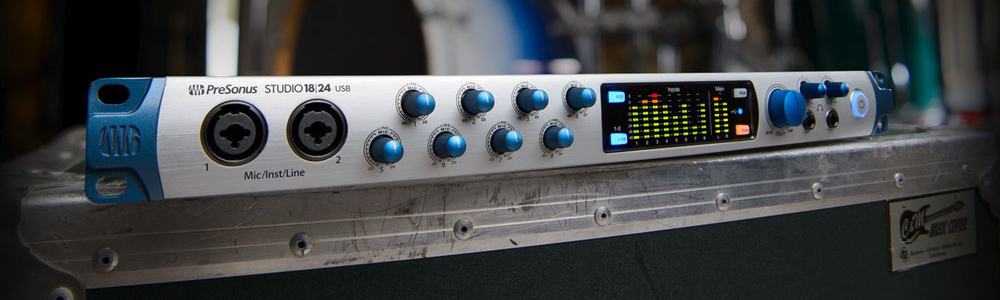

The Studio 18|24 is a full-featured, ultra high definition USB 2.0 recording solution created for demanding producers. Loaded with analog and digital I/O and an 18×8 DSP monitor mixer, the Studio 1824 records up to 24-bit, 192 kHz audio. Flexible routing, near-zero-latency monitor mixing, and control-room integration are available from within included Studio One® Artist for Mac® and Windows® and UC Surface for Mac, Windows, iPad®, and Android™ tablet. Equipped with Presonus’ famous XMAX Class A preamps and high-end converters, it delivers superior audio and the features you need to create your next hit and keep clients coming back for more.
Input/Output
- Up to 18 inputs/18 outputs simultaneously (8×8 at 192 kHz)
- 2 mic/instrument/line inputs with XMAX Class A mic preamps
- 6 mic/line inputs with XMAX Class A mic preamps
- 8 channels of ADAT Optical I/O (4 channels at 96 kHz)
- 2 balanced ¼” TRS main outputs
- DC coupled for sending control voltages
- 8 balanced ¼” TRS line outputs for monitor mixing
- DC coupled for sending control voltages
- 2 stereo headphone outputs with individual level controls
- MIDI In/Out
- Stereo S/PDIF digital I/O
- 1 USB 2.0 port
- BNC word clock output
Integrated Software
- Studio One® Artist for Mac® and Windows®
- UC Surface control software for Mac, Windows, iPad®, and Android™
The Presonus Studio 1810 and 1824 USB 2.0 audio interfaces will be available from April 2018. For more details visit our website.
