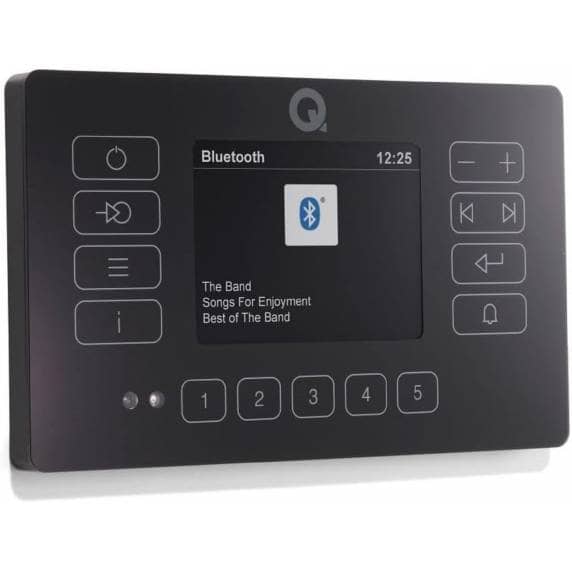

Q Acoustics E120 Black DAB & Bluetooth HiFi System

This single-room, zero-clutter installed wireless audio system delivers superior and immersive audio in any room in the home or garden office, allowing users to wirelessly stream music from any compatible device, listen to radio broadcast and use for TV sound.

Q Acoustics E120 In-Wall Amplifier Specification

Audio Sources: DAB / DAB+ / FM with RDS

Bluetooth: Version 5.0, A2DP

Analogue Input:

• Type: 3.5mm Stereo
• Sensitivity: 350mV
• Max Level: 1.5V
• Impedance: 10k ohm

Optical Input:

• Type: Mini TOSLINK
• Resolution: 16bit 48kHz

Speaker Outputs: Left & Right, stereo or dual mono

Analogue Output:

• Type: 3.5mm Stereo
• Modes: Fixed or variable
• Max level: 670mV

Amplifier:

• Type: Class D
• Continuous Power: 2 x 25W @ 6 ohm
• THD: 0.07% @ 1W / 0.2% @ rated power
• SNR: >75dB @ Rated power
• Frequency Response: 20Hz - 20Hz +/- 1dB

IP Ratings:

• E120 Wall Panel: IP54
• Splash Proof Remote: IP67

Control:

• Touch sensitive buttons
• Infra-red remote control
• Bluetooth AVRCP v1.6: Play, pause, skip, track, artists, album name

Menu Languages: English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish

Alarms: x2 once, daily, weekdays, weekends

Power Supply:

• Input: 100 - 240V AC 50/60 Hz
• Output: 22V DC 1.5amps
• Dimensions (HxWxD): 30mm x 50mm x 115mm

Power Consumption:

• Typical: 10W
• Standby: <1W
• Deep Standby: <0.5W

Wall Panel:

• Net Weight: 0.251kg
• Dimensions (HxWxD): 91mm x 151mm x 33mm

Speaker Cable Supplied:

• Gauge: 19 AWG
• Lengths: 14m (2 speaker kits), 34m (4 speaker kits)

Power Cable Supplied:

• Gauge: 16 AWG
• Length: 5m
• Connectors: 5.5mm x 2.5mm DC male / 5.5mm x 2.5mm DC female
