Q Acoustics E60 - Bluetooth In-Wall Amplifier Touch Panel (Black)

The Q Acoustics E60 is an elegant, easy to install in-wall audio system. Designed for seamless integration into any home, the E60 combines Bluetooth 5.0 wireless connectivity with a clean, screwless aesthetic and a 2 x 25-watt Class D amplifier capable of driving up to two pairs of speakers.

Design & Installation

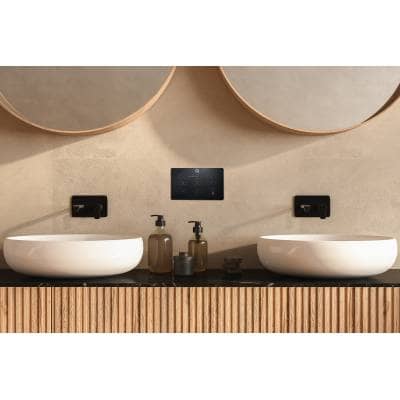

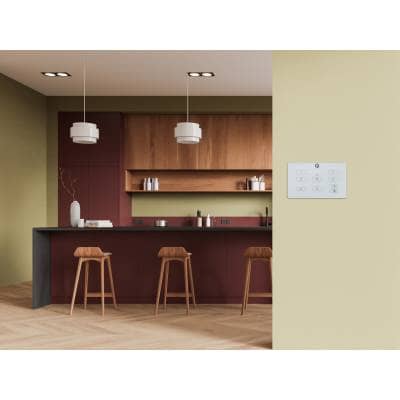

The E60 is IP54-rated & splash-proof straight out of the box, meaning no sealant required. This makes it ideal in bathrooms, kitchens, garden rooms and other humid environments. A screwless clip-in fixing system ensures fast installation and a clean, seamless finish, with deep black and warm white colour options that sit flush in any modern interior.

Controls & User Experience

Touch-sensitive controls work reliably with wet fingers, making them particularly well-suited to bathroom environments. Subtle LED indicators brighten during adjustments for clear visibility, then dim automatically in low light to keep things unobtrusive.

Audio Performance

The E60 features an integrated 2 x 25-watt Class D amplifier that drives up to two pairs of in-ceiling, in-wall or cabinet speakers with controlled, balanced and dynamic performance.

The system is optimised for use with Q Acoustics' own easy install speaker range while remaining fully compatible with third-party models such as our Audiokraft range.

The panel also includes a mono/stereo switch, allowing users to set the system accordingly depending on the environment.

For example:

• Stereo - Two speakers on either side of a TV or where stereo spread matters.
• Mono - Speakers in a bathroom/bedroom or where volume consistency matters over a stereo spread.

Connectivity & Expansion

Bluetooth 5.0 with two-way AVRCP control handles wireless audio streaming, while an optical TOSLINK input allows users to connect directly to a TV or compatible AVR receiver.

Key Features of the Q Acoustics E60

• 2 x 25W Class D amplifier for powerful, balanced sound
• Bluetooth 5.0 (A2DP) wireless streaming
• Optical TOSLINK input for TV and external sources
• Stereo or dual mono operation for flexible room coverage
• Drives up to two pairs of speakers
• Fixed or variable 3.5mm line output for subwoofer or amp expansion
• IP54-rated wall panel – ideal for bathrooms and kitchens
• Screwless clip-in installation for a clean, seamless finish
• Touch-sensitive controls with dimmable LED indicators
• Compatible with Q Acoustics and third-party install speakers

What's Included?

• Systemline E60 In-Wall Amplifier (Black)
• 14 Metres of Speaker Cable
• Power Supply (5M)

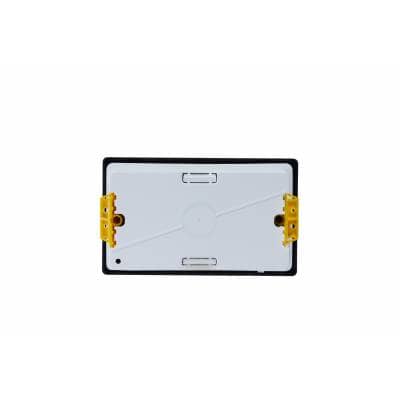

• 47mm 2 Gang Dry Lining Back Box
• Install Instruction Manual
• 1-Year Manufacturer's Warranty

Audio Sources

• Bluetooth: BT 5.0, A2DP
• Optical (TOSLINK): 16-bit / 48kHz

Speaker Outputs

• Channels: Left & Right
• Modes: Stereo or Dual Mono

Analogue Line Output

• Connection: 3.5mm stereo
• Modes: Fixed or Variable
• Maximum Level: 670mV

Amplifier

• Type: Class D
• Continuous Power: 2 x 25W @ 6Ω
• THD: 0.07% @ 1W / 0.2% @ Rated Power
• Signal-to-Noise Ratio: >75dB @ Rated Power
• Frequency Response: 20Hz – 20kHz ±1dB

Ratings

• Wall Panel Protection: IP54

Control

• Touch-Sensitive Buttons: 9
• Bluetooth AVRCP: v1.6 (Play, Pause, Skip, Track Control)

Power Supply

• Input: 100 – 240V AC, 50/60Hz
• Output: 22V DC, 1.5A
• Power Supply Dimensions (H x W x D): 30mm x 50mm x 115mm

Power Consumption

• Typical: 10W
• Standby: 2W

Wall Panel

• Net Weight: 1.3kg
• Dimensions (H x W x D): 91mm x 151mm x 33mm
• Maximum Operating Ambient Temperature: 40°C

Speaker Cable

• Gauge: 19 AWG
• Lengths: 2 x 7m
